Wi-Fi Standard: Wi-Fi 7 (802.11be) Spatial Streams: 6 Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz Max Data Rate: 6 GHz – 5.8 Gbps Coverage Area: 140 m² (1,500 ft²) Max Clients: 300+ Uplink: 2.5 GbE Mounting: Ceiling or Wall (Pro Mount Included) Power Method: PoE+ Warranty: 1-Year
The Ubiquiti UniFi U7 Pro is a high-performance ceiling-mounted access point designed to deliver robust and interference-free Wi-Fi in demanding indoor environments. With support for Wi-Fi 7 (802.11be), it offers enhanced performance and efficiency for modern wireless networks.
Equipped with 6 spatial streams, the U7 Pro provides high throughput across three frequency bands: 2.4 GHz, 5 GHz, and 6 GHz. The 6 GHz band supports a maximum data rate of 5.8 Gbps, while the 5 GHz band offers up to 4.3 Gbps, and the 2.4 GHz band delivers 688 Mbps. This tri-band design ensures optimal performance and minimal interference in high-density environments.
The U7 Pro is compatible with the UniFi Network Controller, allowing for centralized management and seamless integration into existing UniFi ecosystems. It supports advanced features such as WPA3 encryption, 802.11r/k/v fast roaming, and dynamic VLAN assignment, ensuring secure and efficient network operation.
Designed for easy installation, the U7 Pro can be mounted on ceilings or walls using the included Pro Mount. Its PoE+ power method simplifies deployment by reducing the need for additional power outlets. The device also includes a dedicated spectral scanning engine for real-time interference analysis, ensuring optimal performance in crowded environments.

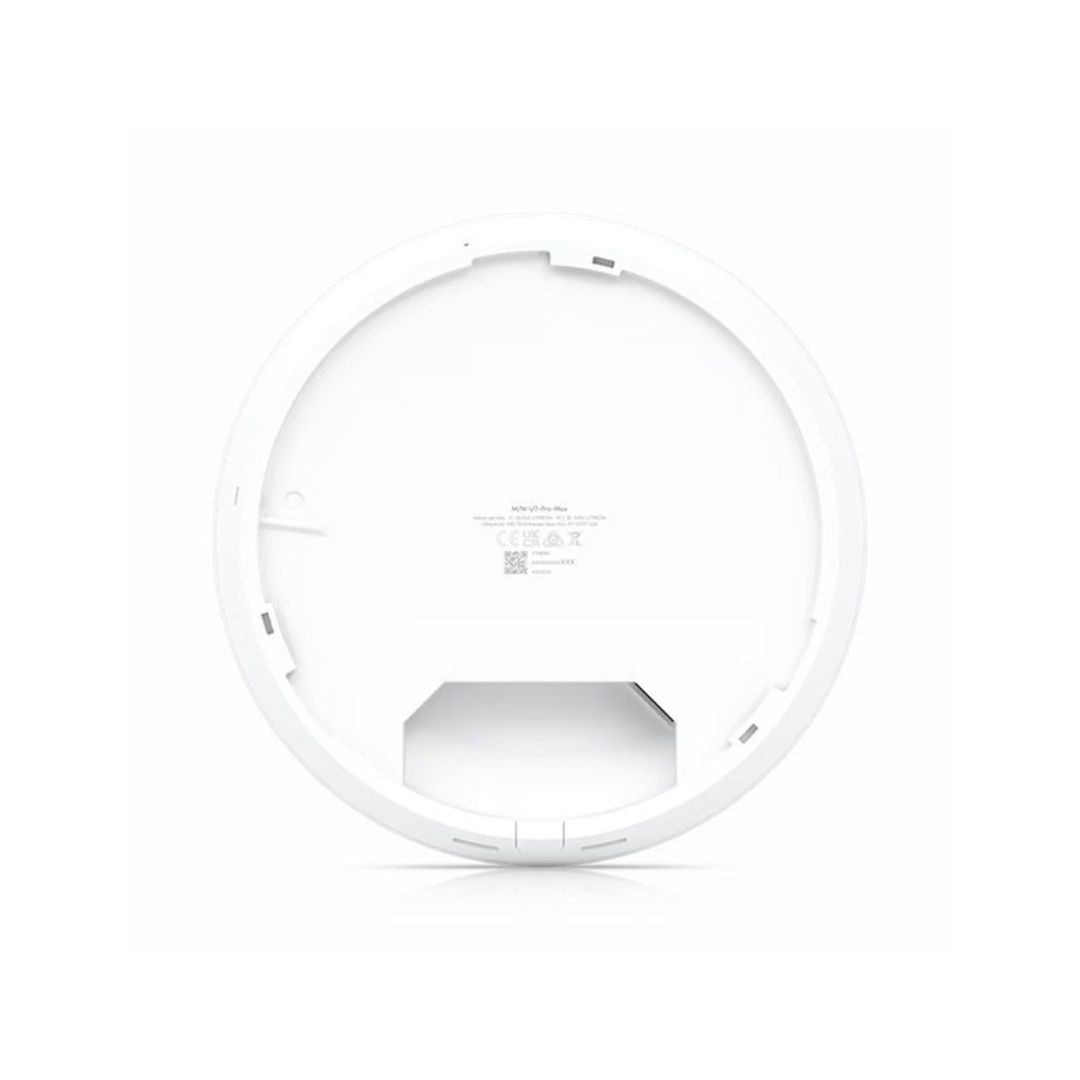

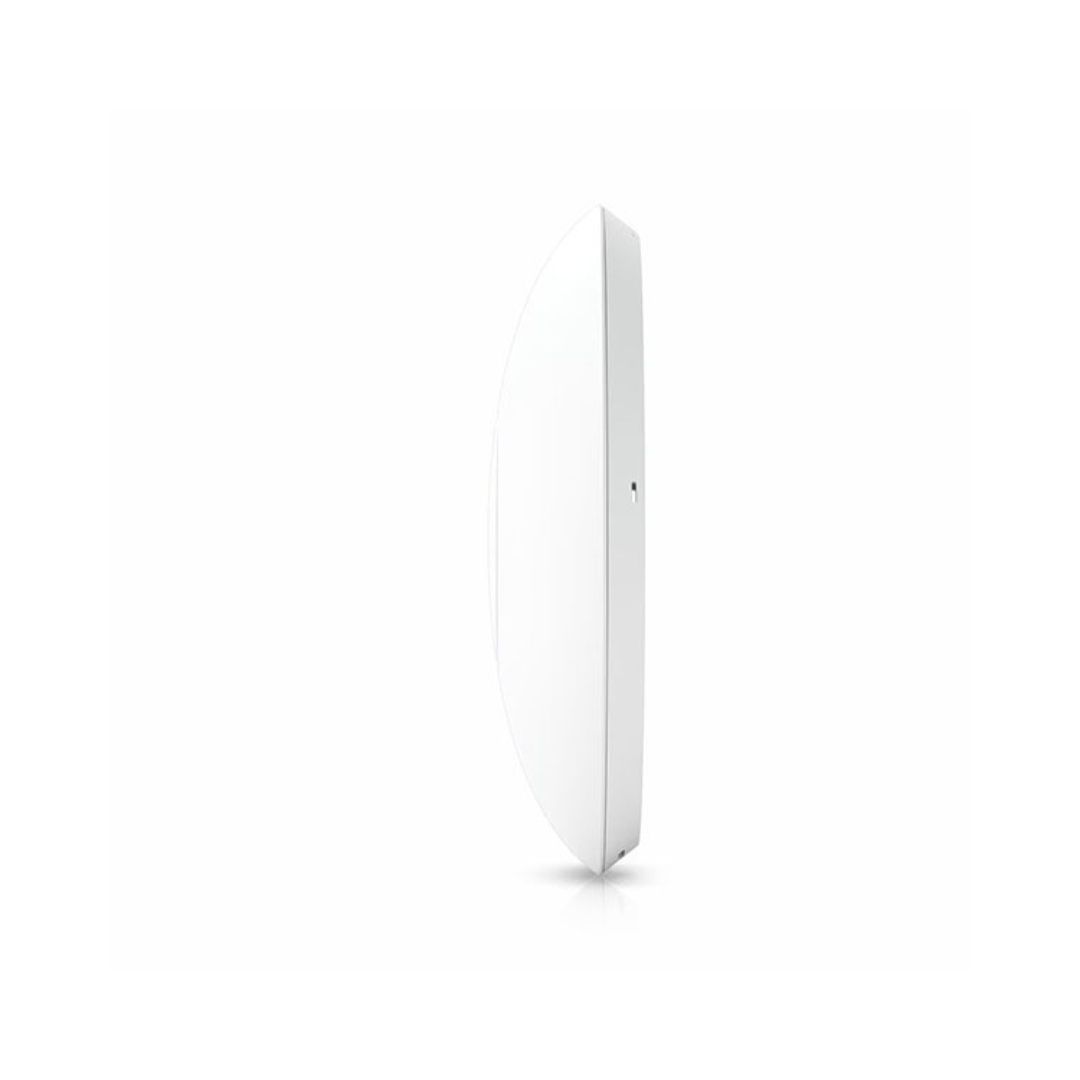

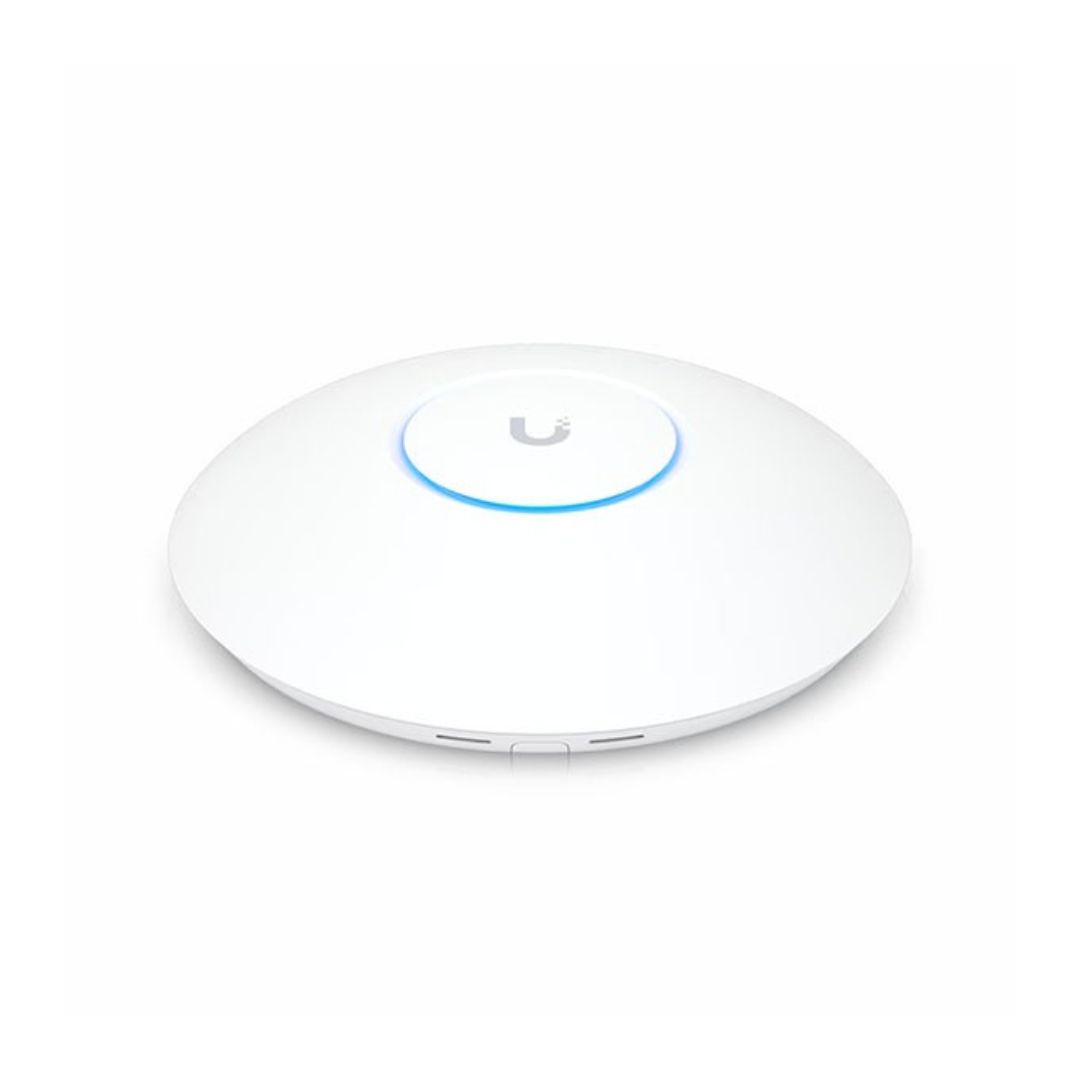

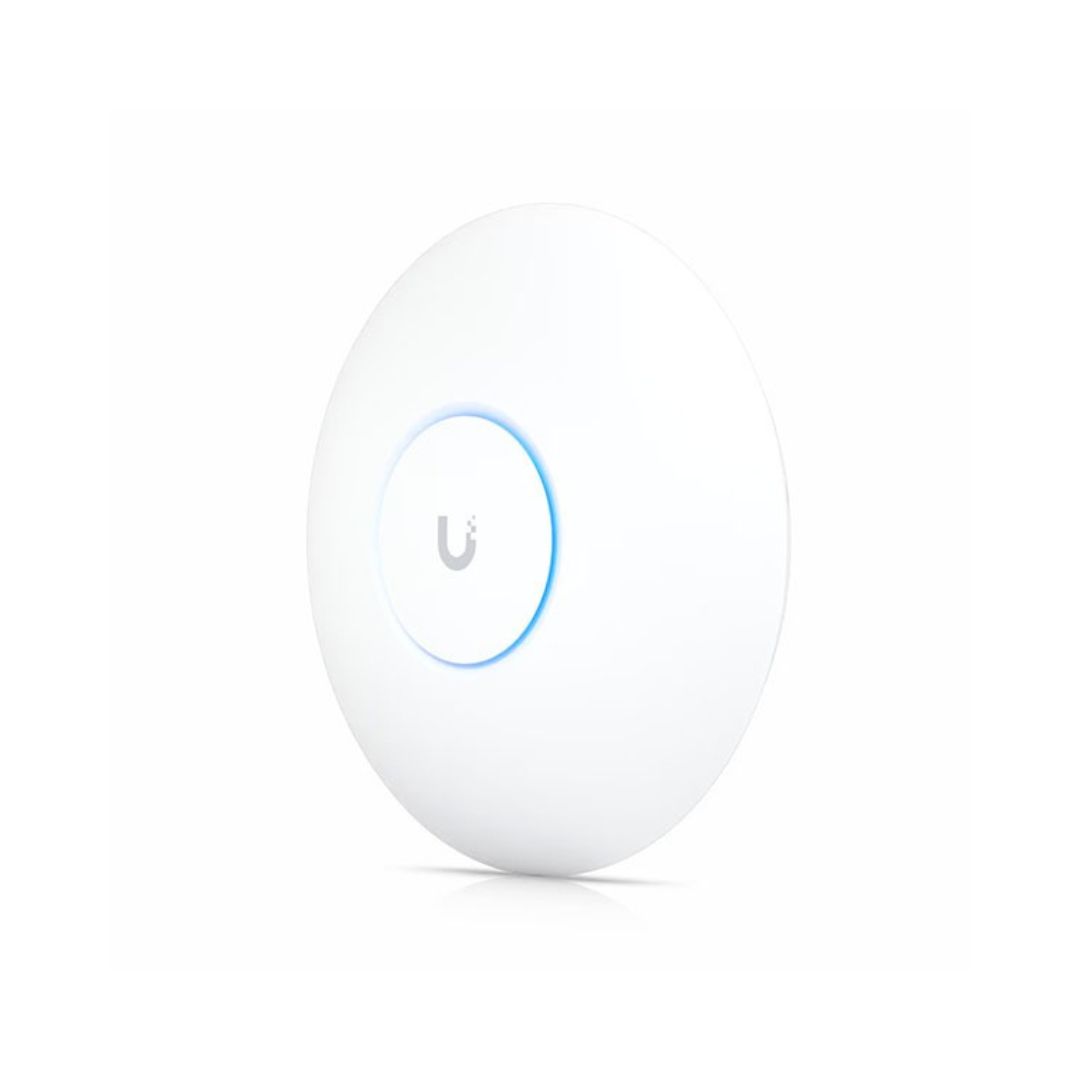

The U7 Pro features a sleek, low-profile design that blends seamlessly into various indoor settings. Its compact dimensions (Ø206 x 46 mm) and lightweight build (680 g) make it suitable for both commercial and residential installations. The polycarbonate and metal enclosure ensures durability and longevity.
To maximize performance, ensure the U7 Pro is centrally located within the coverage area and free from obstructions. Regularly update the UniFi Network Controller to access the latest features and security enhancements. Utilize the device’s real-time spectral analysis capabilities to identify and mitigate interference sources.
RK245
| SKU | U7-PRO-XG |
| Brand | Ubiquiti |
