Ports: 48 (32x GbE PoE+, 16x GbE) SFP Ports: 4x 1G SFP PoE Power Budget: 195W Switching Capacity: 104 Gbps Forwarding Rate: 77 Mpps Layer 2 Features: LACP, STP/RSTP, IGMP Snooping, 802.1X Control Management: UniFi Network Controller Cooling: Fanless Mounting: Rackmount (1U) Warranty: 1-Year

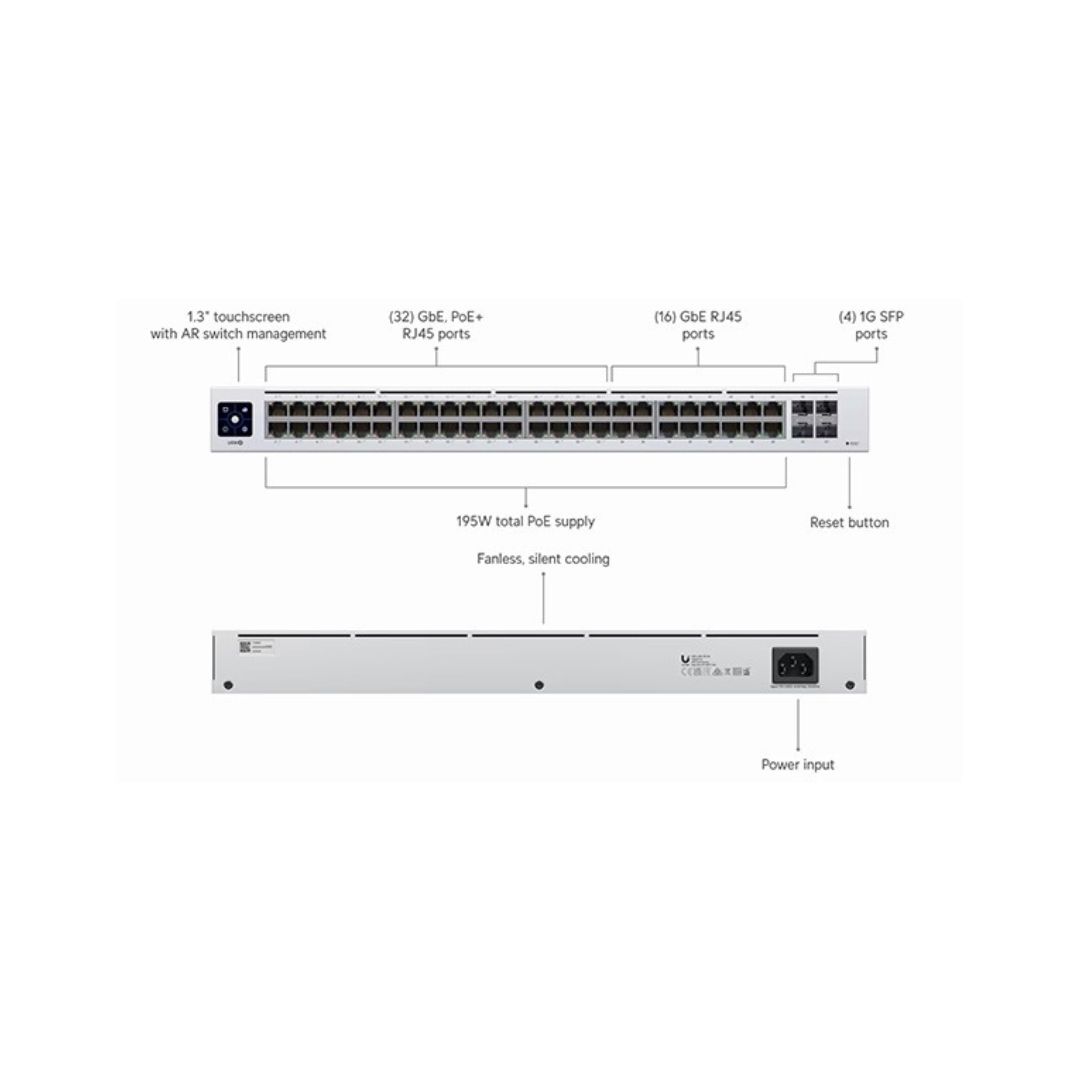

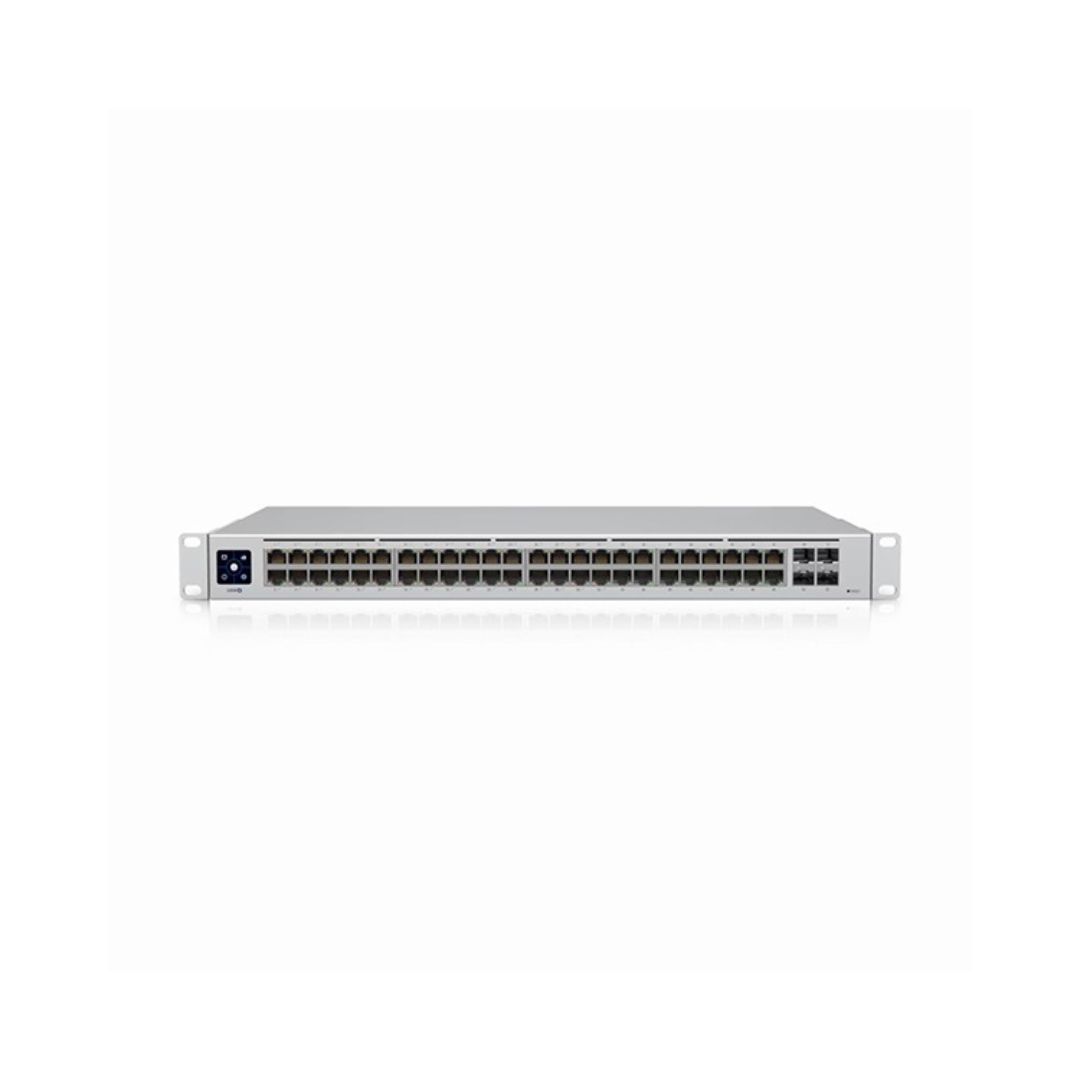

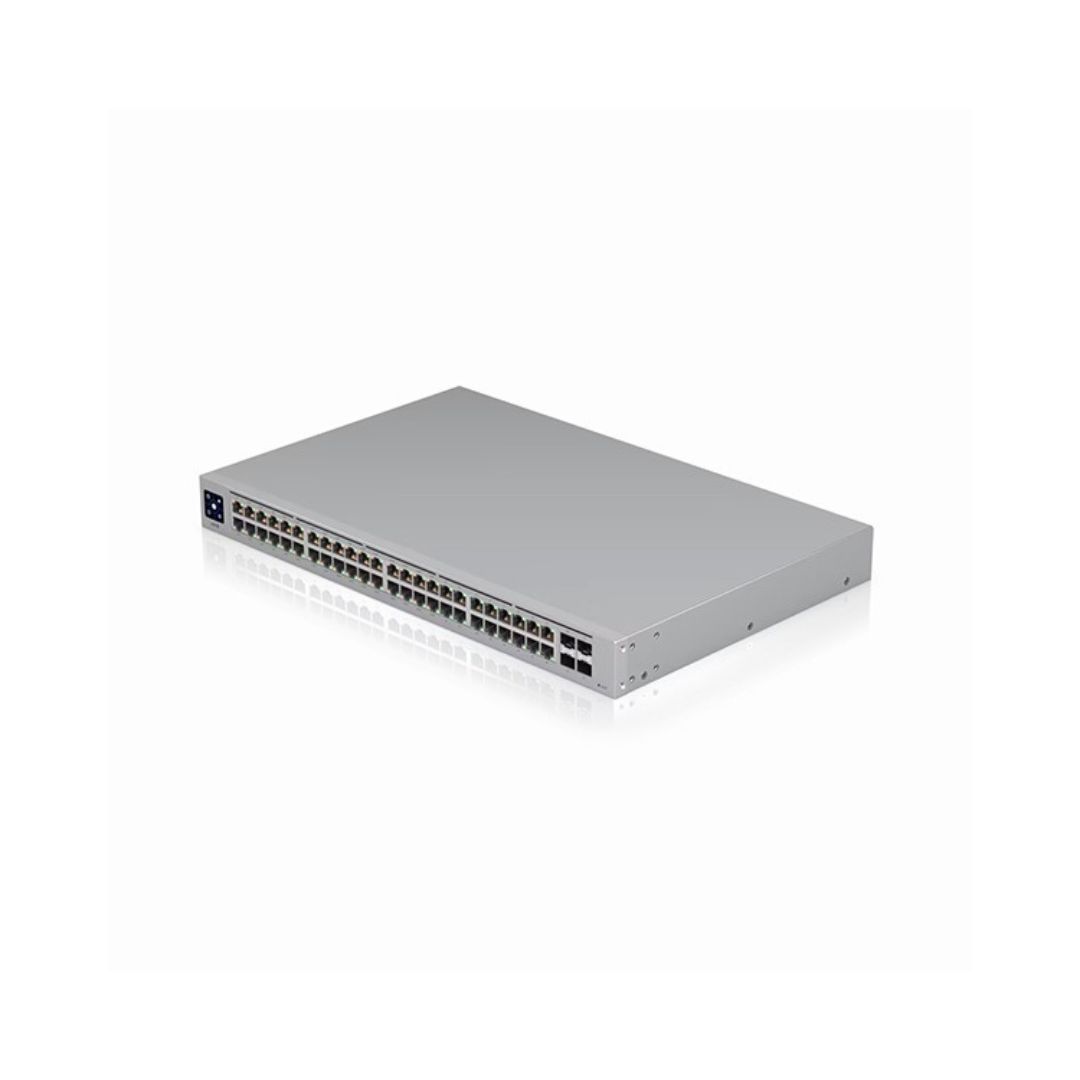

The Ubiquiti UniFi Switch USW-48-POE is a fully managed Layer 2 PoE+ switch designed for enterprise networks. It features 48 Gigabit Ethernet ports, including 32 auto-sensing 802.3at PoE+ ports and 16 standard GbE ports, providing flexible connectivity options for various devices. Additionally, it offers 4x 1G SFP ports for high-speed fiber uplinks, ensuring scalable and efficient network performance.
With a total PoE power budget of 195W, the USW-48-POE efficiently powers connected devices such as access points, cameras, and phones. It supports advanced Layer 2 features such as Link Aggregation Control Protocol (LACP), Spanning Tree Protocol (STP/RSTP), IGMP Snooping, and 802.1X port-based network access control, providing robust network management capabilities. The switch offers a non-blocking throughput of 52 Gbps and a forwarding rate of 77 million packets per second (Mpps), ensuring efficient data processing and minimal latency.
Managed via the UniFi Network Controller, the USW-48-POE integrates seamlessly with other UniFi devices, allowing for centralized control and monitoring. The controller provides an intuitive interface for configuring and managing network settings, monitoring performance, and performing firmware upgrades remotely.
Designed with fanless cooling, the USW-48-POE operates silently, making it suitable for noise-sensitive environments. Its compact form factor (1U) ensures easy integration into standard server racks. The internal power supply supports a wide voltage range (100-240V AC), providing flexibility in deployment.
The USW-48-POE features a durable metal enclosure with dimensions of 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72″) and weighs 4.52 kg (9.97 lb) without rackmount brackets. Its robust construction ensures longevity and reliable operation in demanding environments.
To maximize performance, ensure the switch is placed in a well-ventilated area and free from obstructions. Regularly update the UniFi Network Controller to access the latest features and security enhancements.
| SKU | USW-48-POE |
| Brand | Ubiquiti |
