TPLink EAP225 AC1350 PoE Access Point

Name: TPLink EAP225 AC1350 PoE Access Point
Brand: TP-Link
SKU: SUP-AYOUBCOMPUTERS-2037
Price: 71.99 USD
Availability: InStock

$71.99

In Stock

EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds EAP Controller Software lets administrators easily manage hundreds of EAPs Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible Captive portal provides a convenient method for guest authentication Band Steering A…

Qty

+ -

Category:
Networking
TP-Link

Share:

Description

EAP225

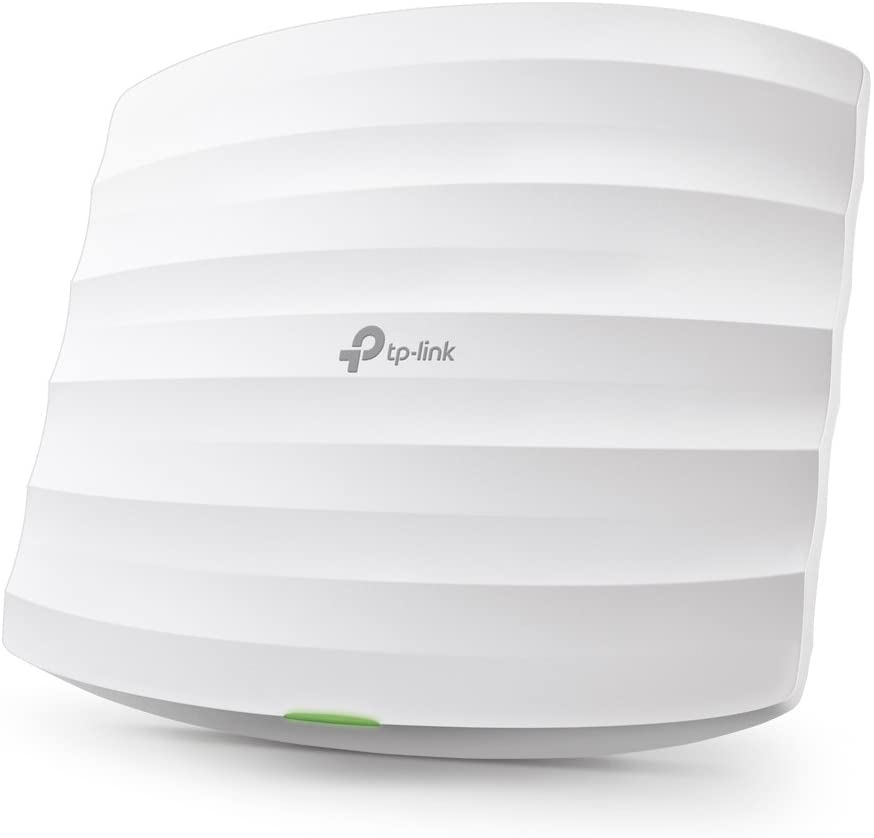

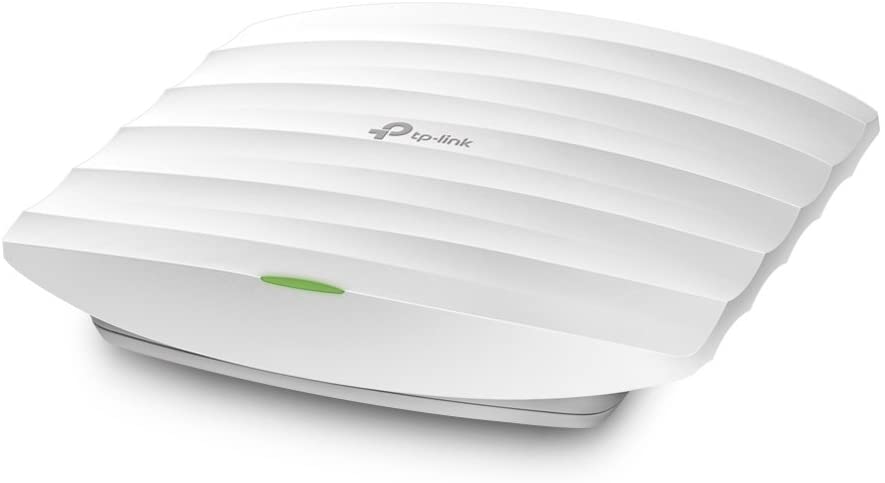

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Simultaneous 450Mbps¹ on 2.4GHz and 867Mbps¹ on 5GHz totals 1317Mbps¹ Wi-Fi speeds
EAP Controller Software lets administrators easily manage hundreds of EAPs
Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
MU-MIMO² means access points simultaneously transfer data with multiple devices, speeding up connections
Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
Supports management VLAN for an enhanced network management
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port x 1 (Support IEEE802.3af or passive PoE)
Physical Security Lock	Yes
Button	Reset
Power Supply	802.3af/at PoE PoE or passive PoE
Power Consumption	12.6W
Dimensions ( W x D x H )	8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
Dimensions	8.1 × 7.1 × 1.5 in (206 × 182 × 37 mm)
Antenna Type	3 Internal Omni 2.4GHz: 4dBi 5GHz: 5dBi
Mounting	Ceiling mount or wall mount (mounting kit included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz:Up to 867Mbps* 2.4GHz:Up to 450Mbps*
Wireless Functions	Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming Band Steering Load Balance MU-MIMO* Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support
Transmission Power	≤24dBm(2.4GHz) ≤22dBm(5GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	FCC, RoHS

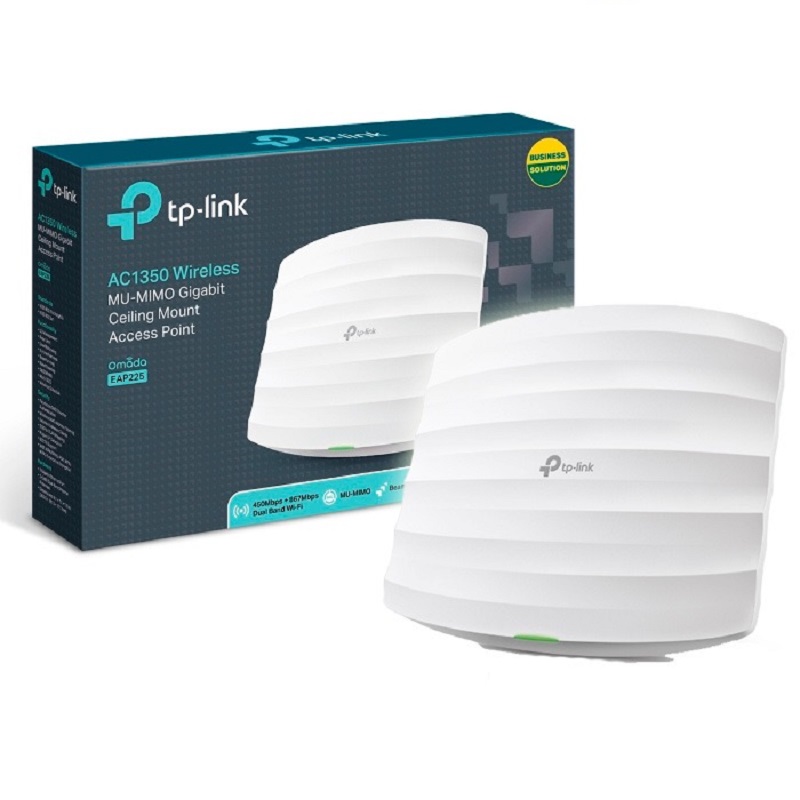

Package Contents	AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 Passive PoE Adapter Power Cord Mounting Kit Installation Guide
