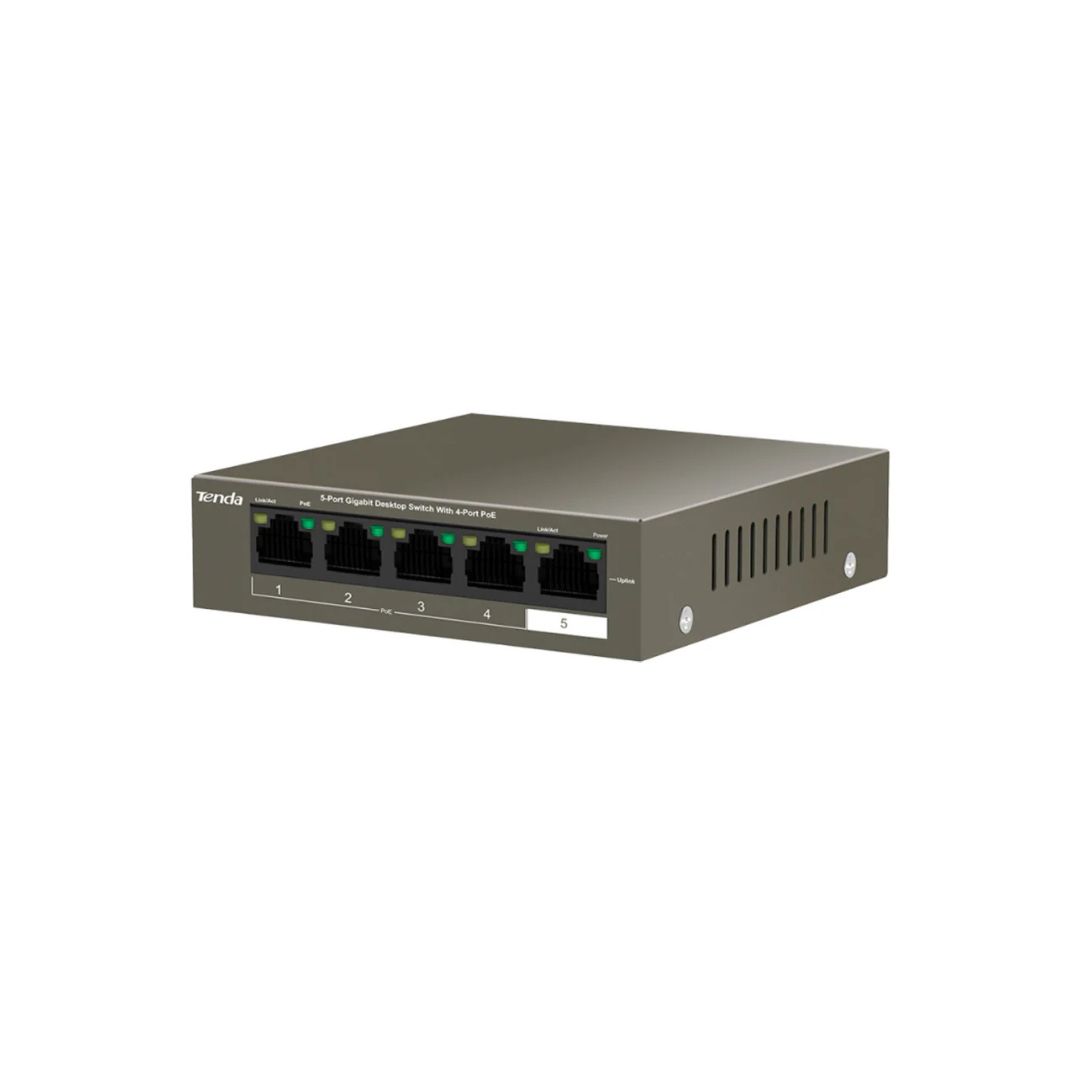

Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch TEG1105P

The Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch is designed to provide reliable power and data connectivity in small networks, such as surveillance systems, WiFi access point deployments, or small office setups. With both performance and safety in mind, the Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch delivers robust features.

Performance / Functionality

The Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch supports IEEE 802.3af and IEEE 802.3at standards, delivering up to 30 W per PoE port and a total power budget of 58 W. The switch provides full gigabit uplink speeds over its uplink port. With a switching capacity of 10 Gbps full duplex and throughput of approximately 7.44 million packets per second under full load, the Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch ensures smooth data transmission even in heavier network usage.

Compatibility

This switch is compatible with typical PoE devices: IP cameras, VoIP phones, wireless access points, and outdoor PoE gear. The unmanaged design of the Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch means it requires no specialized configuration and works with standard Ethernet cabling. It runs on AC 100-240 V (50/60 Hz) input and supports all downstream PoE+ devices compliant with 802.3af/at.

Safety / Convenience

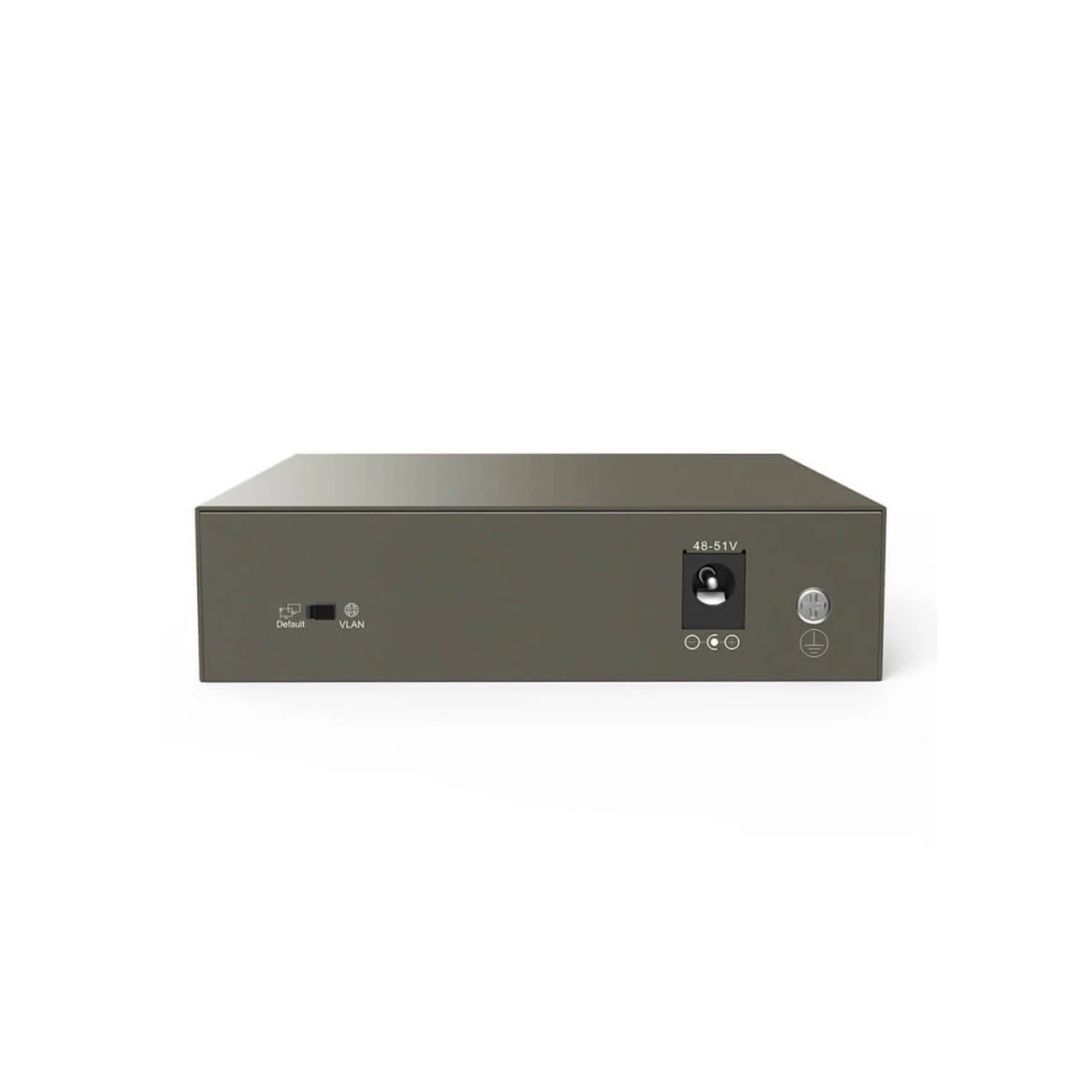

The Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch features a metal casing with a fan-less design, minimizing noise and enhancing durability. It includes lightning and surge protection up to 6 kV on both ports and case to safeguard connected equipment. Passive power management helps reduce energy consumption, and an One-Key VLAN mode isolates the PoE ports (1-4) from each other while still allowing traffic via the uplink, enhancing security in deployments with surveillance or sensitive devices.

Design / Build

Physically, the Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch is compact, suitable for desktop placement or wall mounting. It contains 5 RJ-45 Gigabit ports: four that supply PoE+ (power + data), and one uplink port for data only. The metal housing adds heat dissipation and protection, and the fan-less internal design ensures silent operation. Operating temperature is 0 °C to 40 °C; storage from −40 °C to 70 °C. Humidity ranges are typical non-condensing.

Usage Tips

When deploying the Tenda TEG1105P-4-63W 5-Port Gigabit PoE+ Switch, distribute power-intensive PoE devices across the PoE ports to avoid exceeding the 58 W budget. Enable One-Key VLAN mode if security between endpoints is needed, such as separating cameras from access points. Use quality Cat5e or Cat6 cables for full gigabit performance. Ensure adequate ventilation since the metal enclosure dispels heat, even though there is no fan. Lastly, wall-mounting may benefit cable management and protection in tighter spaces.
