NZXT AC-CRFR0-B1 RGB & Fan Controller – RGB Lighting & Digitally-Controlled Fan Channels The RGB & Fan Controller combines optimal fan control, RGB lighting customization, and convenient installationall in an intuitive and easy-to-use package. Control up to nine 3-pin DC or 4-pin PWM fans, allowing Zero RPM mode to optimize noise levels.

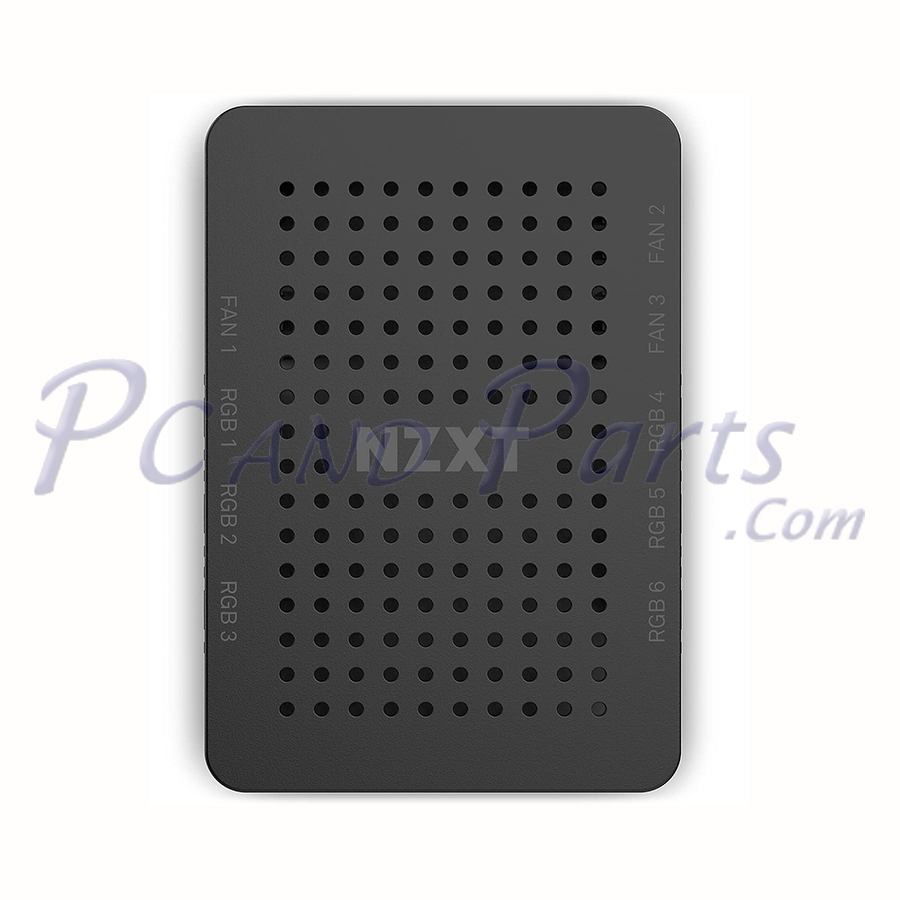

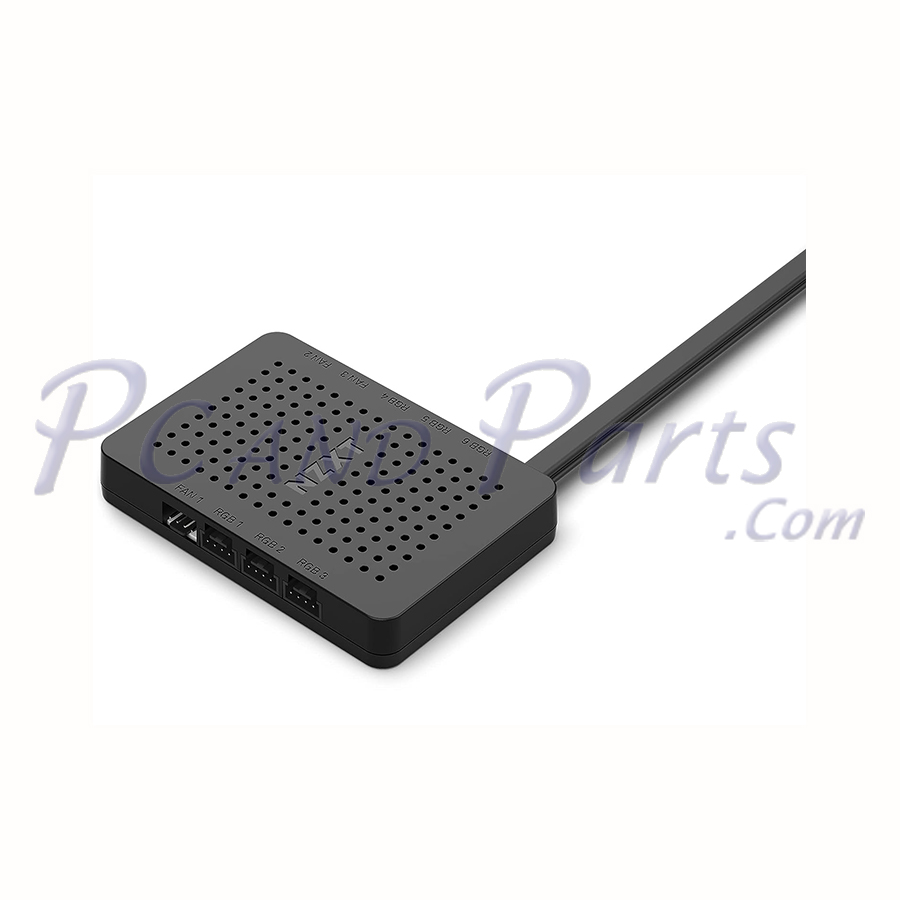

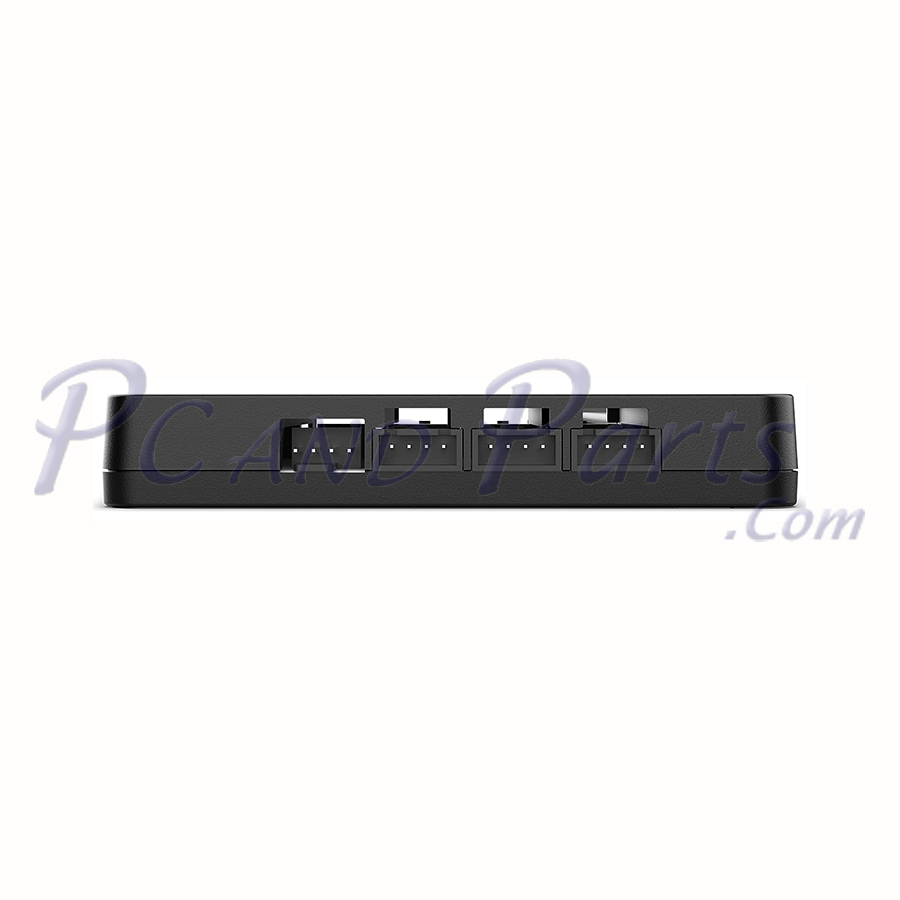

NZXT AC-CRFR0-B1 RGB & Fan Controller – RGB Lighting & Digitally-Controlled Fan Channels
The RGB & Fan Controller combines optimal fan control, RGB lighting customization, and convenient installationall in an intuitive and easy-to-use package.
Control up to nine 3-pin DC or 4-pin PWM fans, allowing Zero RPM mode to optimize noise levels.
Six NZXT RGB lighting channels, up to 40 individually addressable LEDs per channel, 120 LEDs total.
The Fan Controller can be installed directly to the PC via SATA and an internal USB header.
Inside the Box
1X RGB & Fan Controller
3X Fan Splitter Cables
2X Velcro
Tech Specs
DIMENSIONS
Height:100mm
Width:70mm
Depth:16mm
OUTPUT CHANNELS
RGB Lighting Channels:6
Fan Channels:3
INPUT CONNECTOR
Lighting:5 V DC 4.5 A
Fans:12 V DC 3 A
Lighting channels support:Max 40 LED per channel and Max 120 LED combined total for All 6 channels
System Requirements:PC with available internal USB 2.0 header, Windows 11/10 operating system, and CAM software
CONNECTION CABLES
USB 2.0 Header:1
SATA Power Cable:1
Fan splitter cables (1-3 split):3
| Type | Case Lighting |
| Brand | NZXT |
| SKU / Part No. | AC-CRFR0-B1 |
| Weight | 1.00 kg |
