Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket Supports 256GB DDR5 memory and speeds up to 9200+ MT/s Provides PCIe 5.0 graphics slots and five M.2 storage slots Includes dual Thunderbolt 4, 10Gbps LAN, and Intel Killer Wi-Fi 7 Features 24+2+1+1 power design with 110A Smart Power Stages

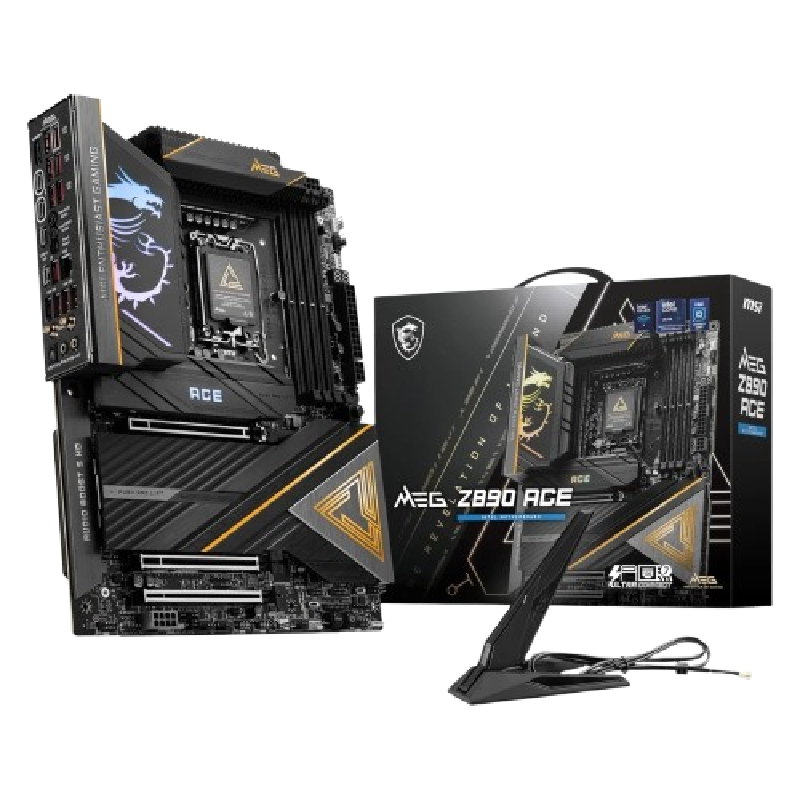

MSI MEG Z890 ACE Gaming Motherboard is an ATX motherboard built for Intel Core Ultra Processors (Series 2) using the LGA 1851 socket. It uses the Intel Z890 chipset and supports advanced gaming and overclocking features.
The motherboard has four DDR5 memory slots with support for up to 256GB. It supports memory speeds up to 9200+ MT/s with overclocking. Moreover, Intel XMP 3.0 and CUDIMM support provide more memory tuning options.
For graphics cards, the board provides three PCIe x16 slots. The main slot supports PCIe 5.0 x16, while the second supports PCIe 5.0 x8. In addition, the third slot supports PCIe 4.0 x4.
Storage includes five M.2 slots. One M.2 slot supports PCIe 5.0 x4, while other slots support PCIe 4.0. The board also provides four SATA 6Gb/s ports and supports RAID 0, 1, 5, and 10.
The motherboard includes two Thunderbolt 4 ports with transfer speeds up to 40Gbps. It also features 10Gbps LAN and Intel Killer Wi-Fi 7. Furthermore, Bluetooth 5.4 provides wireless connectivity for compatible devices.
The audio system combines the Realtek ALC4082 codec with an ESS9219Q DAC and headphone amplifier. It supports 7.1-channel USB audio and playback up to 32-bit/384kHz on the front panel.
MSI MEG Z890 ACE Gaming Motherboard uses a 24+2+1+1 Duet Rail Power System with 110A Smart Power Stages. It also includes cooling features such as Direct Touch heat pipes, MOSFET cooling, and double-sided M.2 Shield Frozr.
Check out other options here!
| Capacity | 256GB |
| Memory Type | DDR5 |
| Interface | PCIe 5.0 |
| Form Factor | ATX |
| Socket | LGA 1851 |
| Brand | MSI |
