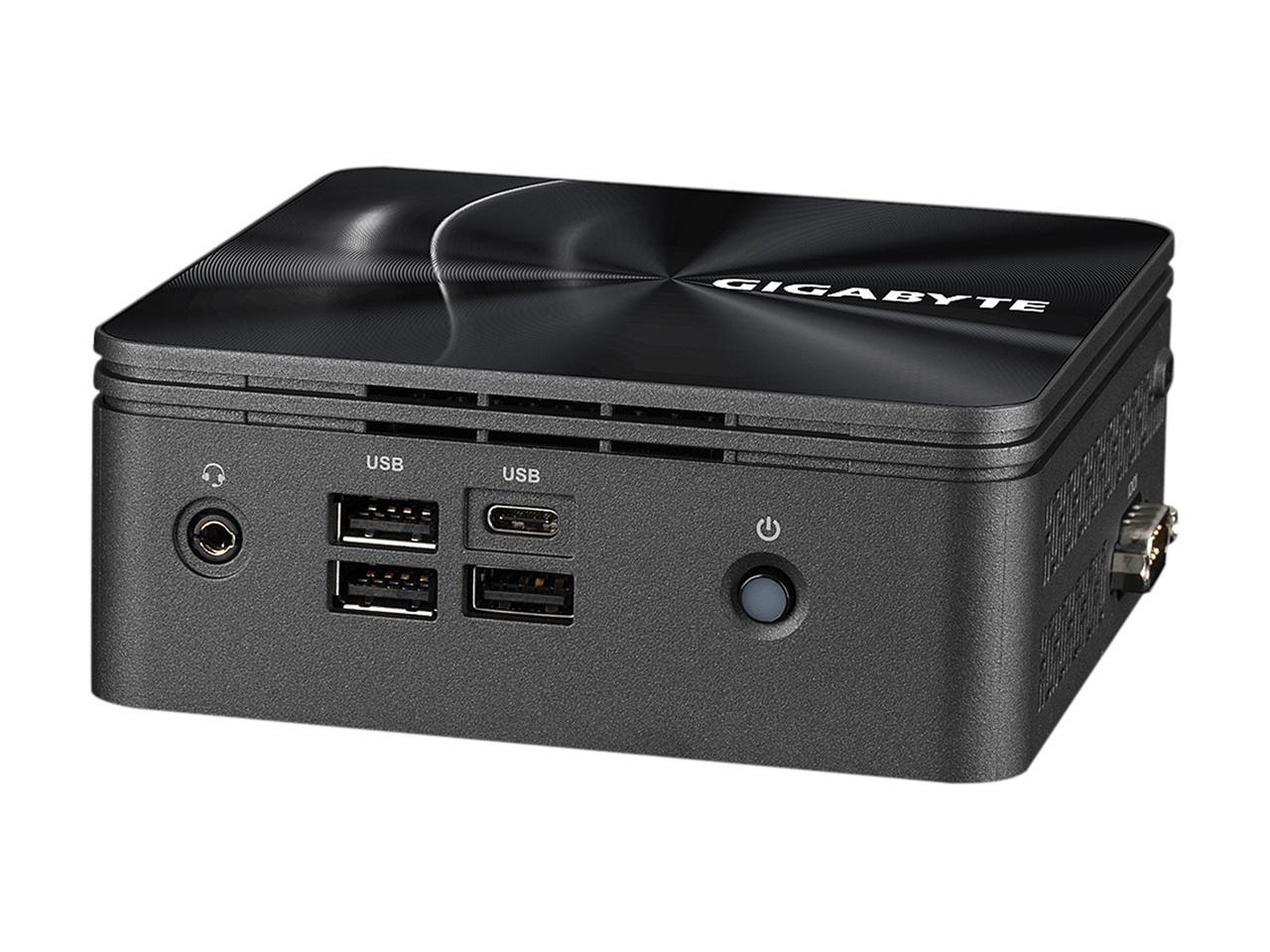

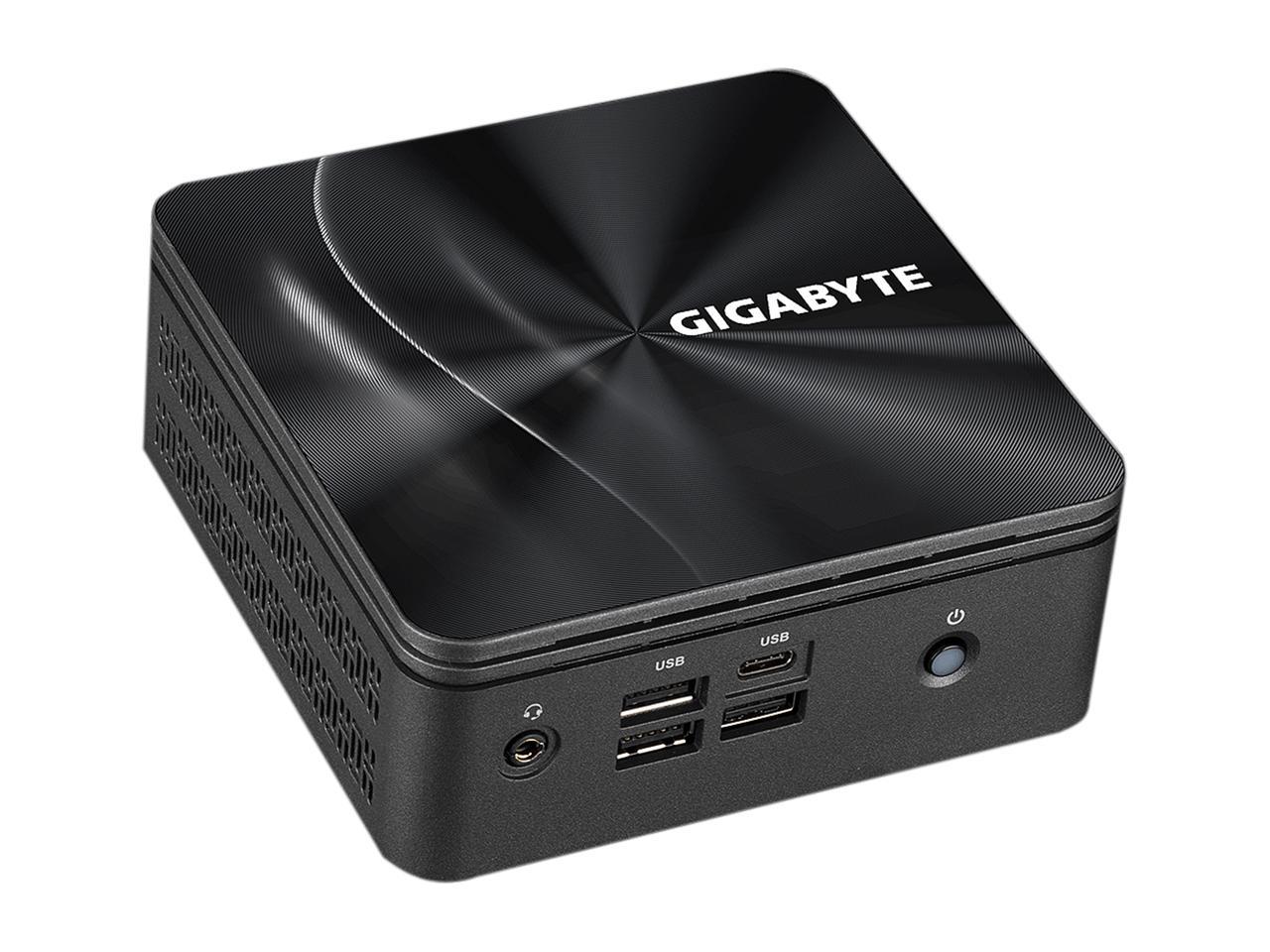

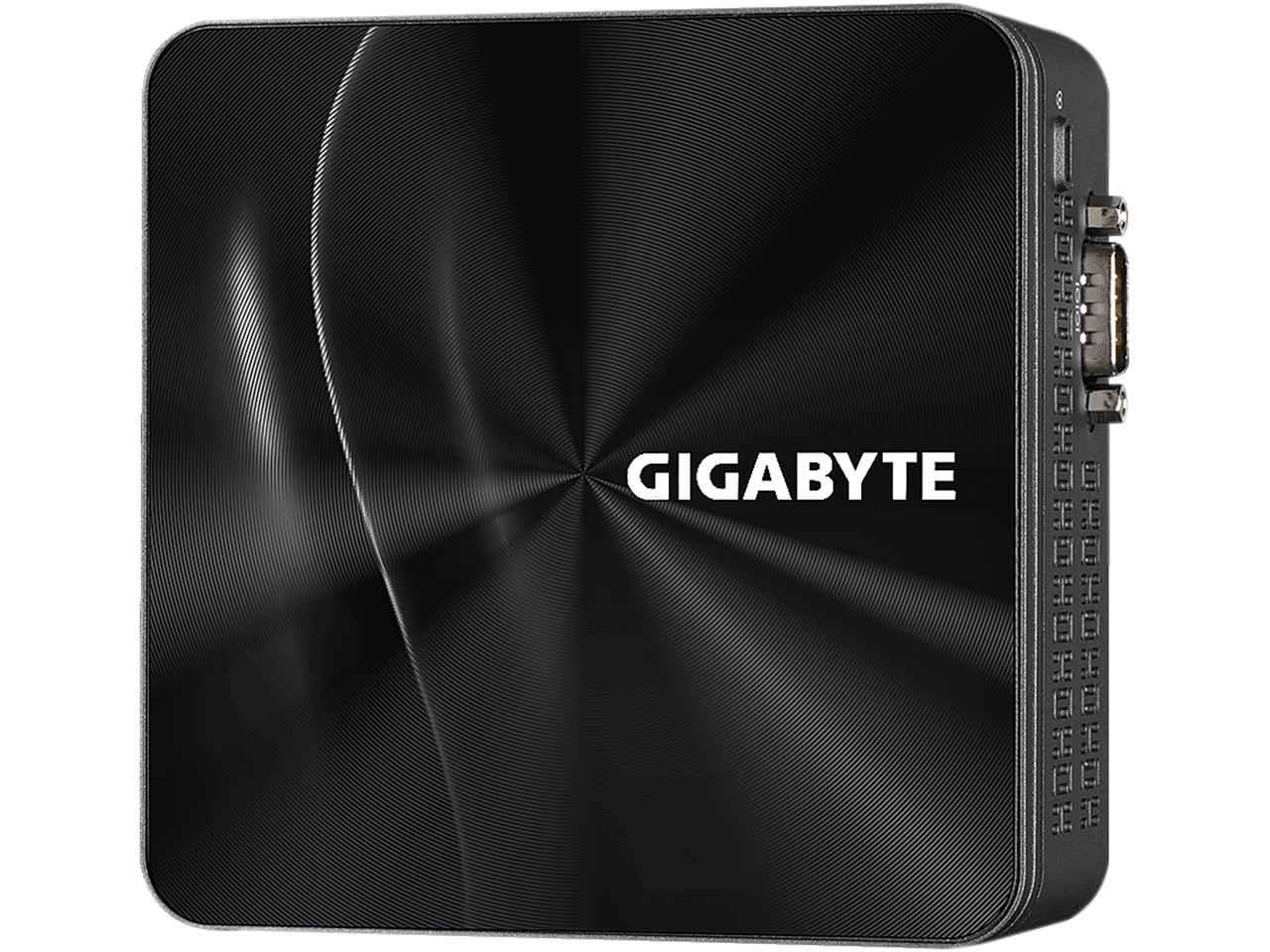

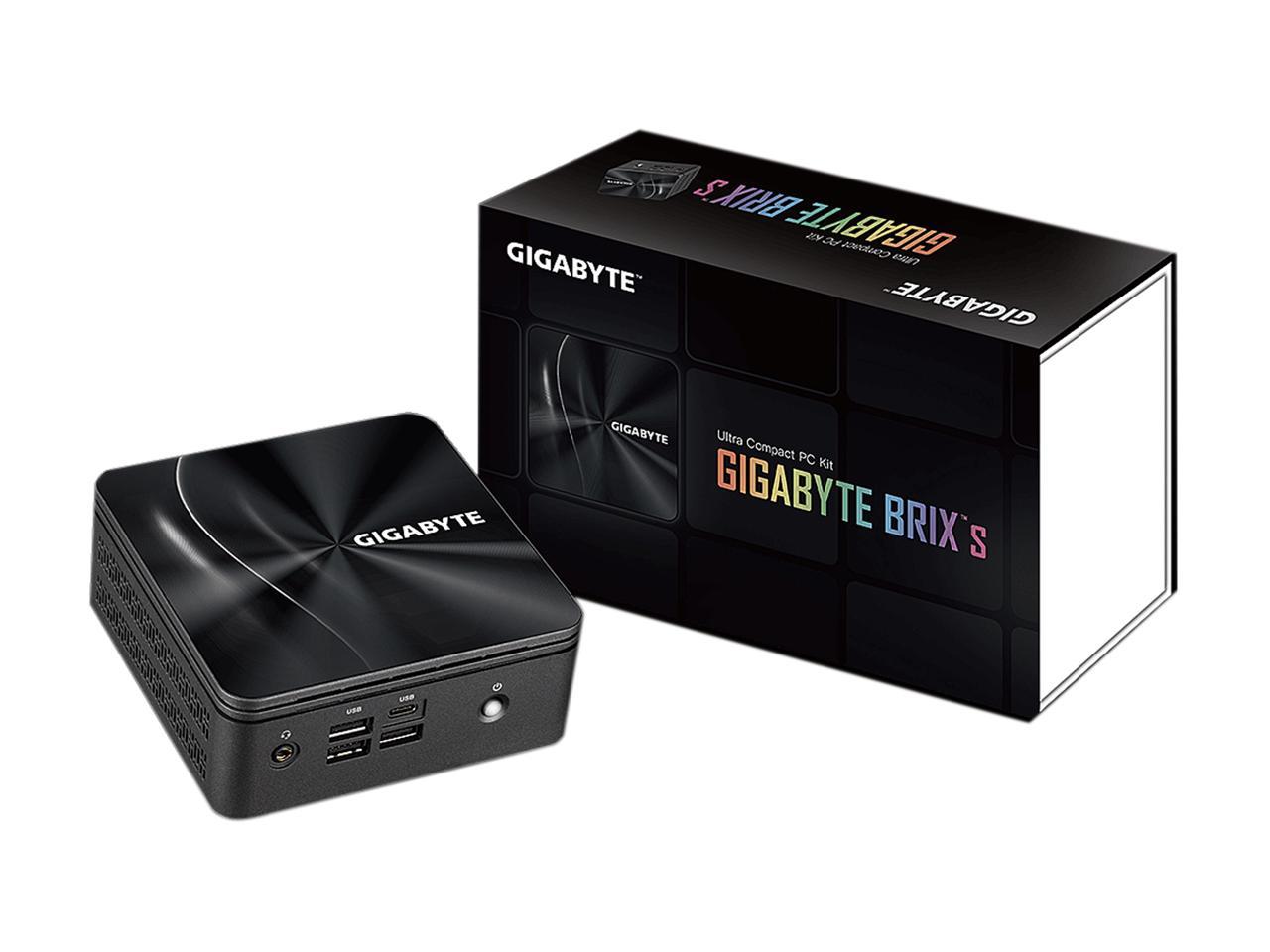

Gigabyte Brix S GB-BRR7H-4800-BW

Name: Gigabyte Brix S GB-BRR7H-4800-BW
Brand: Gigabyte
SKU: GB-BRR7H-4800-BW
Price: 592.99 USD
Availability: InStock

$592.99 $609.99

In Stock

High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm) Ultra compact PC design in 2 size (Slim /HDD) Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3) 1 x M.2 SSD (2280) slot support PCI-e x4 /SATA 2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB Intel WIFI6 +BT5.2 Realtek 2.5G LAN RTL8125 QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P RS232 COM port in HDD version 5x USB 3.…

Qty

+ -

Category:
Computers & Laptops
Gigabyte

Share:

Description

High Performance Ultra Compact PC (46.8 x 119.5 x 119.5 mm)
Ultra compact PC design in 2 size (Slim /HDD)
Supports 2.5″ HDD/SSD, 7.0/9.5 mm thick (1x6Gbps SATA 3)
1 x M.2 SSD (2280) slot support PCI-e x4 /SATA
2 x SO-DIMM DDR4 slots support 3200Mhz, Max 64GB
Intel WIFI6 +BT5.2
Realtek 2.5G LAN RTL8125
QUAD display : 2x Type C / HDMI / mDP with HDCP @4x4K/60P
RS232 COM port in HDD version
5x USB 3.2 Gen1 Type A + 2x USB 3.2 Gen2 Type C (4F,3R)
Realtek ALC255 Codec
Headphone Jack
VESA Mounting Bracket (75 x 75mm + 100 x 100mm)
AC-DC adapter : 100-240V input, 19V/90W
OS Support : Microsoft Windows 10 64Bit
1x Kensington Lock slot
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
Option Daughter board support, 2nd COM port + LAN

Dimension

4‎6.8 mm x 119.5 mm x 119.5 mm (1.8″ x 4.7″ x 4.7″)
Motherboard Size

105 x 110 mm
CPU

AMD RYZEN R7-4800U 1.8G~4.2G Turbo, 8C/16T Core, 12MB L3 Cache
AMD Radeon GPU 1750Mhz , 15W
Memory

2 x SO-DIMM DDR4 slots
3200MHz
Max. 64GB
LAN

2.5G LAN (Realtek 8125)
Wifi Card

Intel WiFi6 AX200 / BT 5.2
Audio

Realtek ALC255
Video

AMD Radeon™ Graphics
HDMI Resolution (Max.)

HDMI2.0a ws HDCP 2.2
3840×2160@60Hz
Storage

Supports 2.5″” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
1 x M.2 slot (2280_storage)
PCIe Gen3 X4 /SATA
Expansion Slots

1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

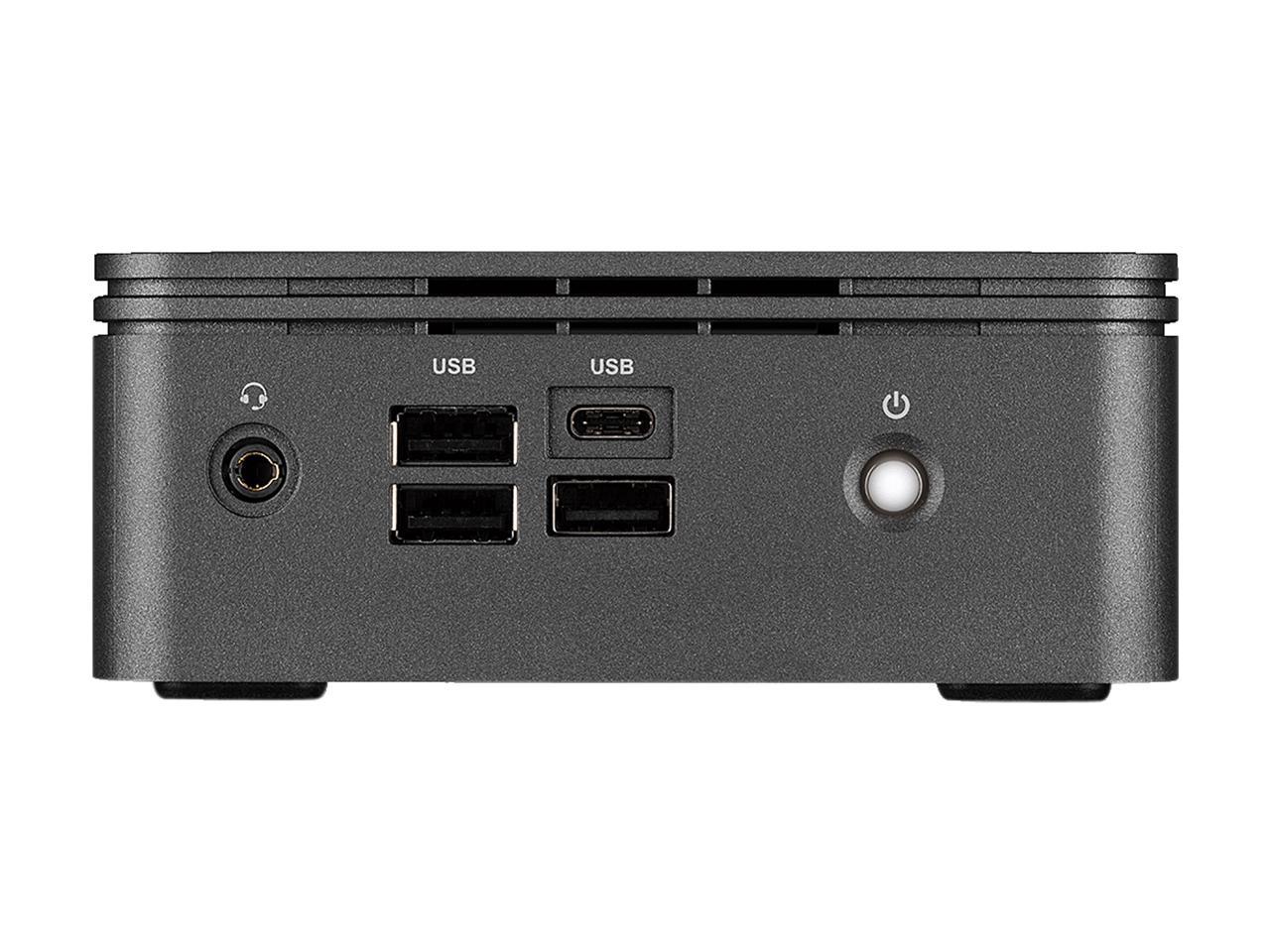

Front I/O

1 x Power Button
1 x USB 3.2 type C (Gen2) w/ DP alt mode
3 x USB type A 3.2 (Gen1)
1 x head phone jack with MIC
Rear I/O

1 x HDMI(2.0a)
1 x mDP
1 x USB 3.2 type C (Gen2) w/ DP alt mode
2 x USB 3.2 type A (Gen 1)
1 x RJ45
1 x DC-In

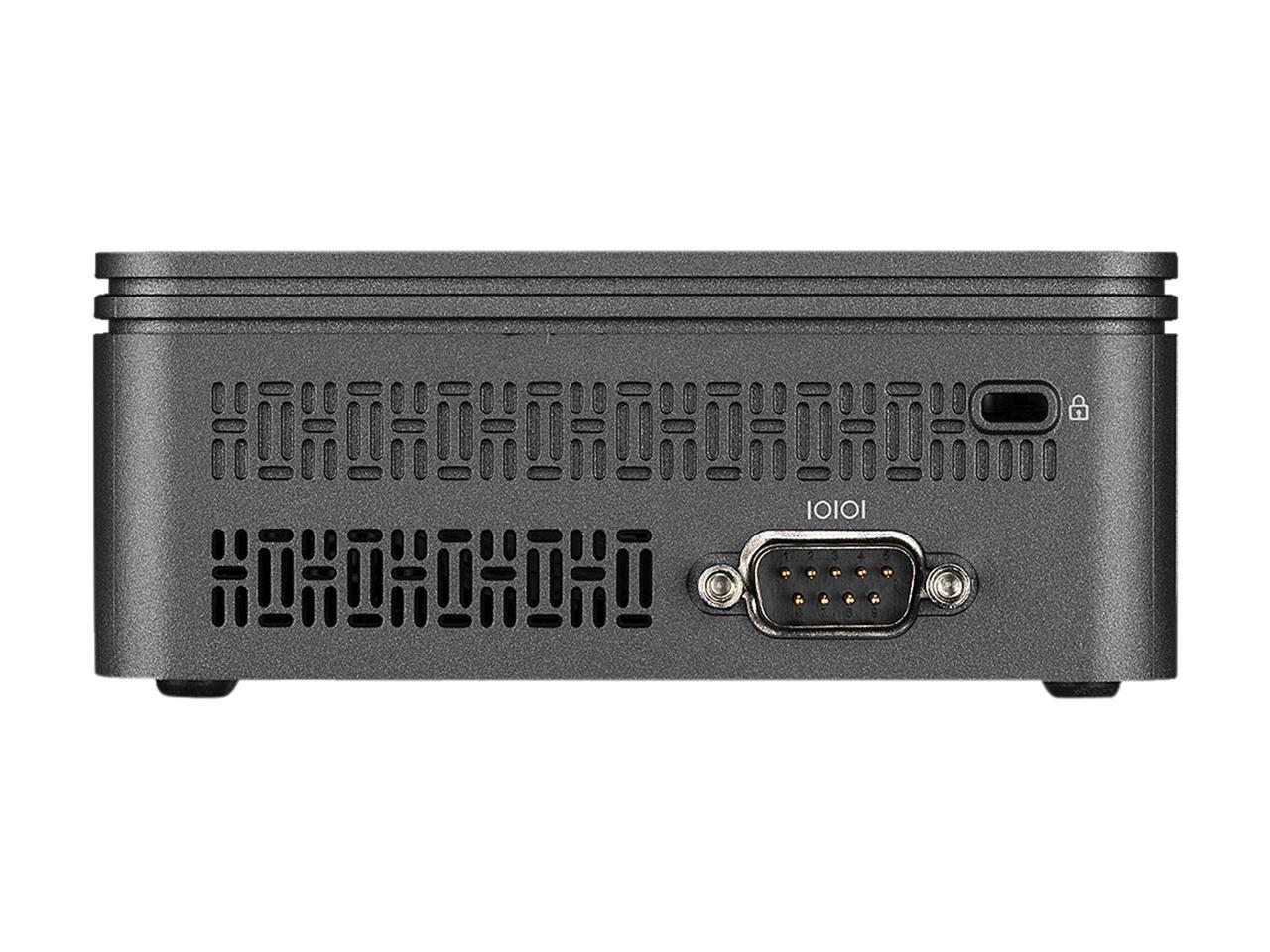

Side I/O

1 x Kensington lock slot
1 x COM port
Power Supply

Input: AC 100-240V
Output: DC 19V/4.74A, 90W
Support OS

Win10 64bit
Environment

Operating Temperature 0°C to 35°C
Storage Temperature -20°C to +60°C

Product Information

Capacity	64GB
Memory Type	DDR4
Interface	M.2
Refresh Rate	60Hz
Resolution	105 x 110
Speed	3200Mhz
Wattage	90W
Brand	Gigabyte
SKU / Part No.	GB-BRR7H-4800-BW
