Quality The 106 column capacity with 24 pins means greater quality Speedy Impressive print speed of 529 cps Productive Big memory buffer of 128 KB and built-in Print Speed Enhancer Reliable Combined power of print head life and MTBF of 20,000 hours Energy efficient Low power consumption so better for environment
Technology
Printing Method

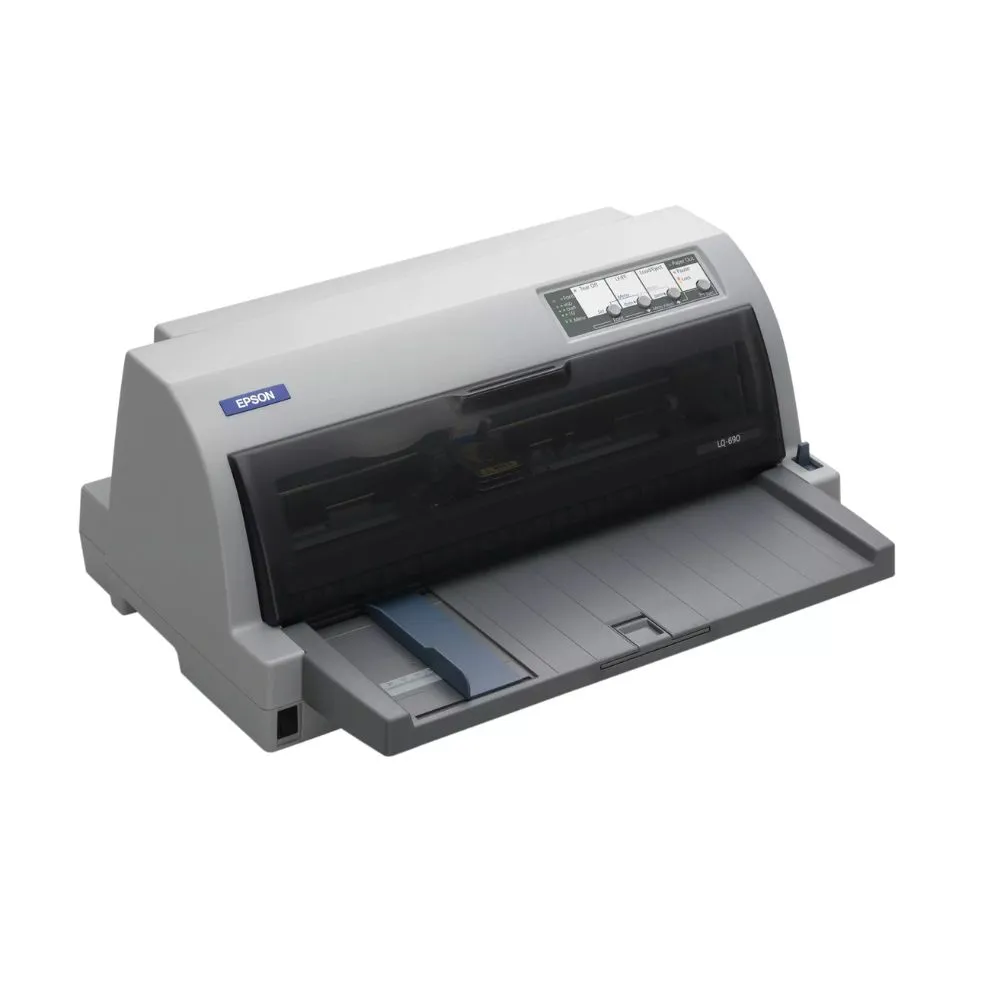

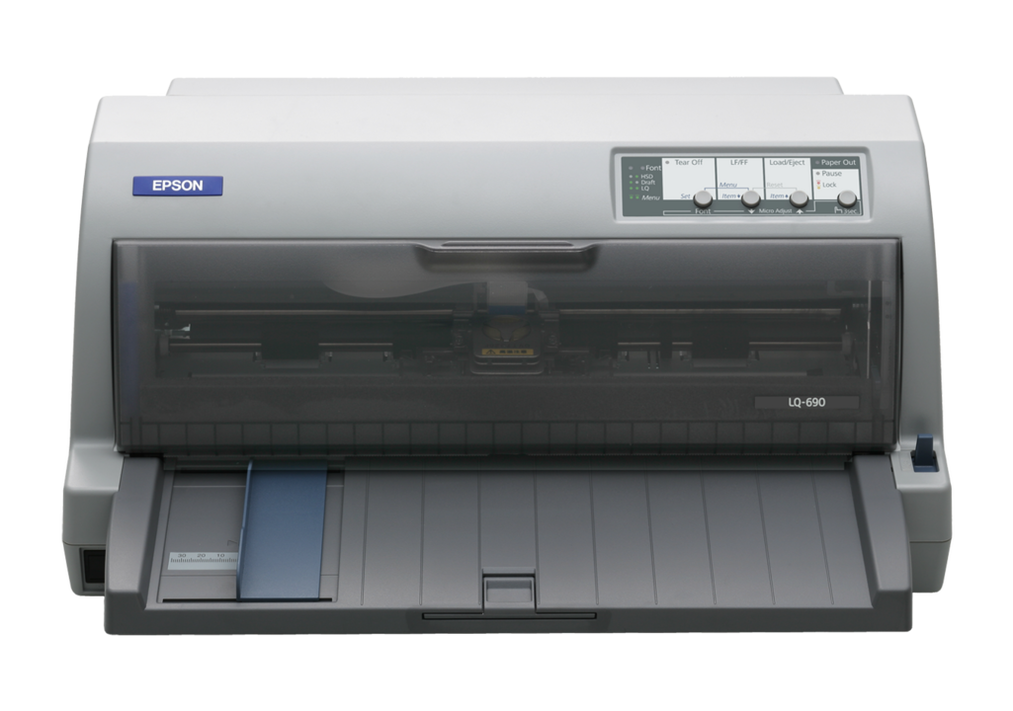

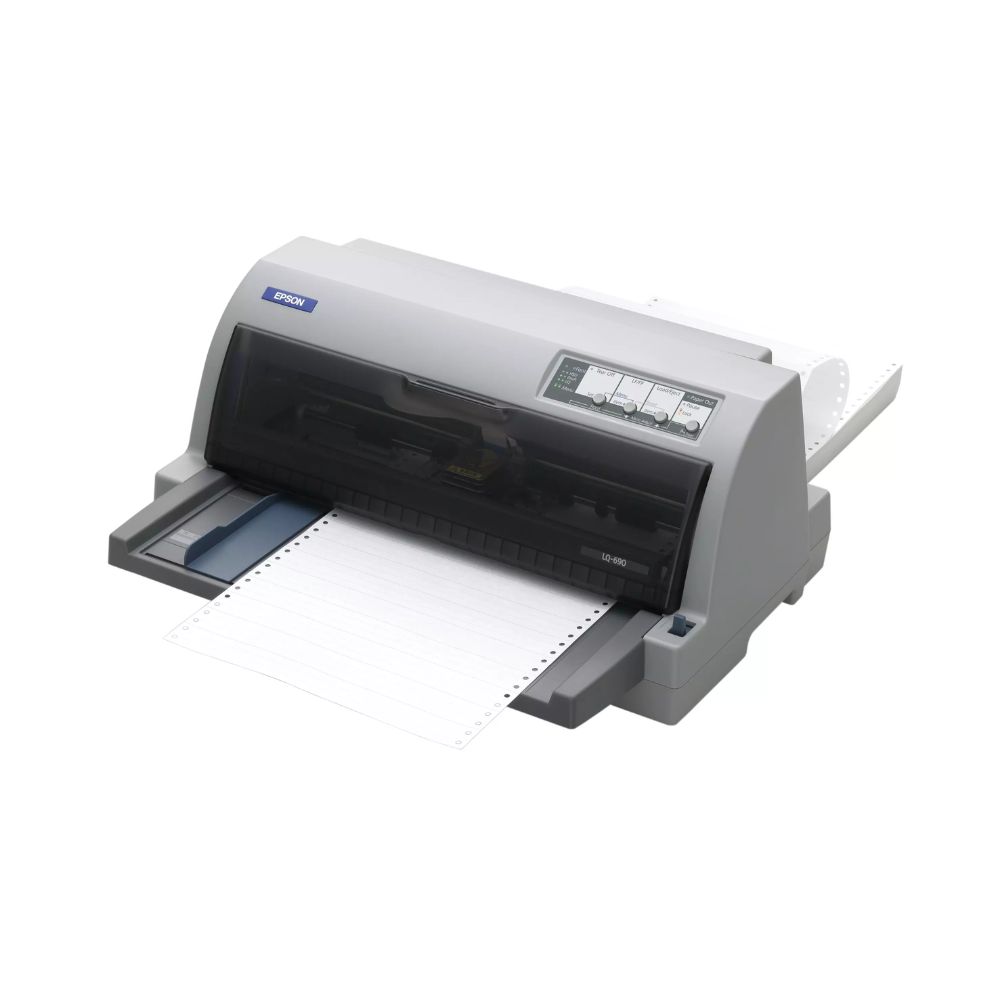

Epson LQ-690 Impact dot matrix
Number of Pins
24 pins
Number of columns
106 columns
Pins24 Needles
Printing Speed
HighSpeed-Draft: 10 cpi: 440 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 330 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 110 chars/s, 12 cpi: 132 chars/s
Barcodes
Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Epson LQ-690 Carbon Copies
6 plus one original
Character Tables
PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Epson LQ-690 Printing Resolution
360 x 180 DPI
Connectivity
Interfaces
USB 2.0, Bidirectional parallel
Paper / Media Handling
Epson LQ-690 Document Feed
Single sheet front, Continuous media rear, Paper output front
Paper Formats
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper
0,065 mm – 0,49 mm
Paper Thickness Label Base Sheet
0,16 mm – 0,19 mm
Paper Thickness Label Total Sheet0,16 mm – 0,19 mm
Paper Thickness Multi Part
0,12 mm – 0,49 mm
Paper Thickness Single Sheet0,065 mm – 0,19 mm
General
Power consumption
38 Watt, 3 Watt (standby)
Product dimensions
480 x 370 x 210 mm (Width x Depth x Height)
Product weight
6,8 kg
Supported Temperature
Operation 5° C – 35° C
Bitmap font EPSON OCR-B (10 CPI)
Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI)
Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional
Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T
Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Memory
128 kB Included
Ribbon Yield10000000 characters Black Draft
| SKU | LQ-690 |
| Brand | Epson |
