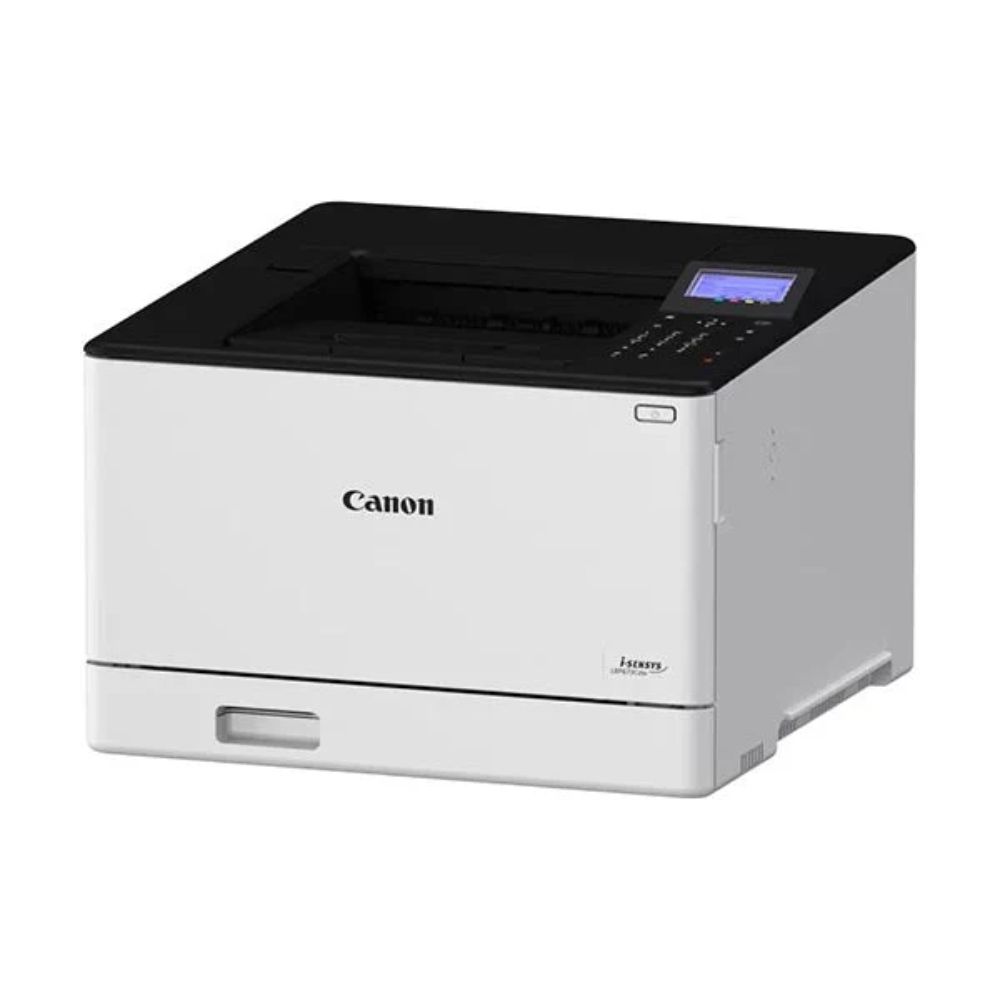

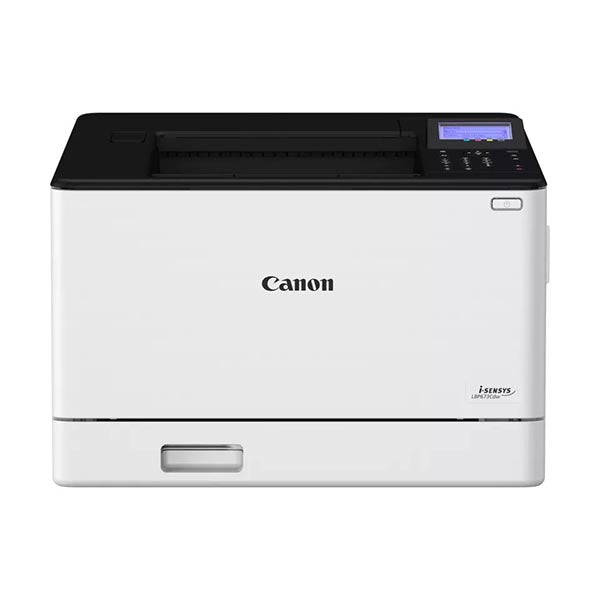

Canon LBP673CDW – i-SENSYS Laser Printer

Utilize the power of the cloud to maximize workflow efficiency

• Cloud connectivity and fast print speeds facilitate an effortless print experience for a range of media sizes, to give your small office a big productivity boost.

Fast printing

• Accelerate your business output with print speeds of up to 33ppm A4 color and handling of smaller media types, including cheques and receipts.

Cloud connectivity

• Print documents directly from cloud storage services such as Google Drive, DropBox, and OneDrive, with centralized print management from Microsoft Universal Print support.

Easy usability

• Streamlined user experience includes shortcut buttons set up directly from the printer display to save time on frequently used jobs.

Robust security

• Protect your device and sensitive documents with Secure PIN functionality to restrict user access and Verify System at Start-up to detect virus threats.

Specifications

• 33ppm: print speeds
• Secure: PIN print
• 5-line: LCD display Automatic: duplex printing Easy Wi-Fi: set up Direct cloud connectivity: with Dropbox, Google Drive, and OneDrive Universal: print support

Specifications in detail
General Specifications

• Machine Type: Colour laser Available Functions: Print

Print Specifications

Print Speed

• Single-sided: Up to 33 ppm (A4)
• Single-sided: Up to 60 ppm(A5-Landscape)
• Double-sided: Up to 29.5 ppm (A4)
• Printing Method: Colour laser beam printing

Print Resolution: Up to 1200 x 1200 dpi

Warm-up Time: Approximately: 19.4 seconds or less from power on

First-Print-Out Time :

• Colour approx.: 7.1 seconds or less
• Mono approx.: 7.1 seconds or less

Printer Languages: UFRII, PCL5c*, PCL6, Adobe® PostScript*

Fonts: 45 PCL fonts, 136 PS fonts

Print Margins: 5 mm-top, bottom, left, and right
Advanced Printing Features:

• Encrypted Secure Print
• Secure Print
• Print from USB memory key (JPEG/TIFF/PDF)
• Microsoft Universal Print support
• iOS: AirPrint, Canon PRINT Business app
• Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
•

Media Handling

• Paper Input (Standard): 250-sheet cassette, 50-sheet multi-purpose tray
• Paper Input (Option): 550-sheet cassette
• Maximum Paper Input Capacity: 850 sheets
• Paper Output: 150-sheet
• Media Types: Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched,
• Label, Postcard, Envelope

Media Sizes:

• Cassette (Standard): A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Postcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.
• Multi-purpose tray: A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Postcard, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76 x 127 mm Max. 216.0 x 356.0 mm.
• Cassette (Optional): A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Postcard, Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.

Canon LBP673CDW Media Weights:

• Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
• Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)

Canon LBP673CDW Double Sided Printing Automatic

• Cassette: A4, A5, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K

Canon LBP673CDW Interface & Software

• Interface Type: USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility: Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012, Mac OS X version 10.12 & up

Canon LBP673CDW Network Protocol

• Print: TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
• Management: SNMPv1, SNMPv3 (IPv4,IPv6)
• Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
• Security (wireless): Infrastructure Mode: WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WAP2-EAP(AEP)
• Access Point Mode: WPA2-PSK(AES)

Software and Printer Management:  Remote User Interface (RUI), Department ID Management, Toner Status Tool, iW Enterprise Management Console: Server-based software for centralized management of a fleet of devices eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management, and remote diagnostics.
General Features

• Canon LBP673CDW Recommended Monthly Print Volume: 750 – 4,000 pages per month
• Duty Cycle: Max. 50,000 pages per month
• Processor Speed: 1200MHz x 2
• Memory: 1GB
• Control Panel: 5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H): 425 mm x 427 mm x 300 mm
• Weight: Approx. 17.1 kg
• Operating Environment: Temperature: 10 to 30ºC (50 to 86ºF), Humidity 20 to 80% RH (no condensation)
• Power Source: 220-240V (±10%) 50/60Hz (±2Hz)

Canon LBP673CDW Power Consumption

• Maximum: Approx. 1,380W or less
• Active printing: Approx. 700 W
• Standby: Approx. 24.0W or less
• Sleep: Approx. 1.0 W or less
• Typical Electricity Consumption (TEC): 0.31 kWh/week*

Canon LBP673CDW Noise Levels

• Sound power: Active: 65dB or less, Standby: 36dB or less
• Sound pressure: Active: Simplex 51dB (CL)) / 50 dB (BW), Duplex 51dB (CL) / 50dB (BW)
• Standby: 25 dB
• Declared noise emission in accordance with ISO 7779.
• Based on ISO9296, the below figure is different.
• Active: 62dB or less

Canon LBP673CDW Consumables
Cartridges

• Cartridge 069 Black (2,100 pages)
• Cartridge 069H Black (7,600 pages)
• Cartridge 069 Cyan (1,900 pages)
• Cartridge 069H Cyan (5,500 pages)
• Cartridge 069 Magenta (1,900 pages)
• Cartridge 069H Magenta (5,500 pages)
• Cartridge 069 Yellow (1,900 pages)
• Cartridge 069H Yellow (5,500 pages)
