ASRock B860M Pro RS WiFi DDR5 LGA1851 ( Supports 15th Gen CPUs only ) Model 90-MXBRQ0-A0UAYZ Superb Productivity PCIe Gen5 (Graphics, M.2) 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA 4 x DDR5 DIMM supports Dual Channel, up to 8666+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x4 Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen…

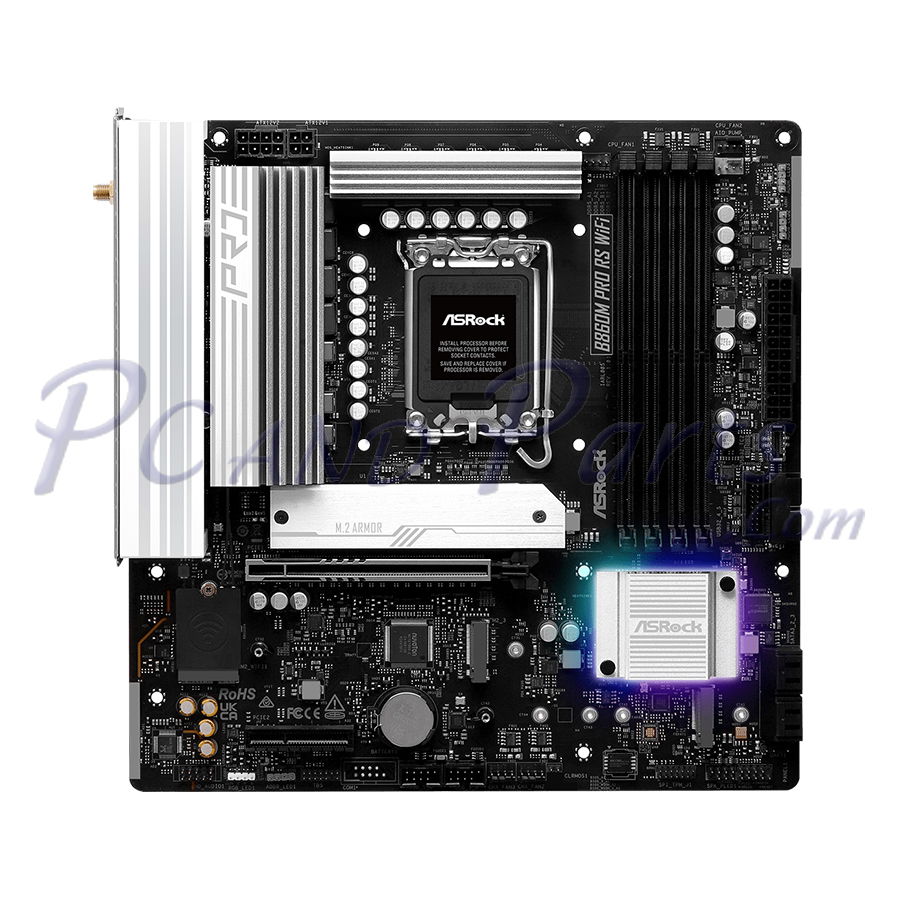

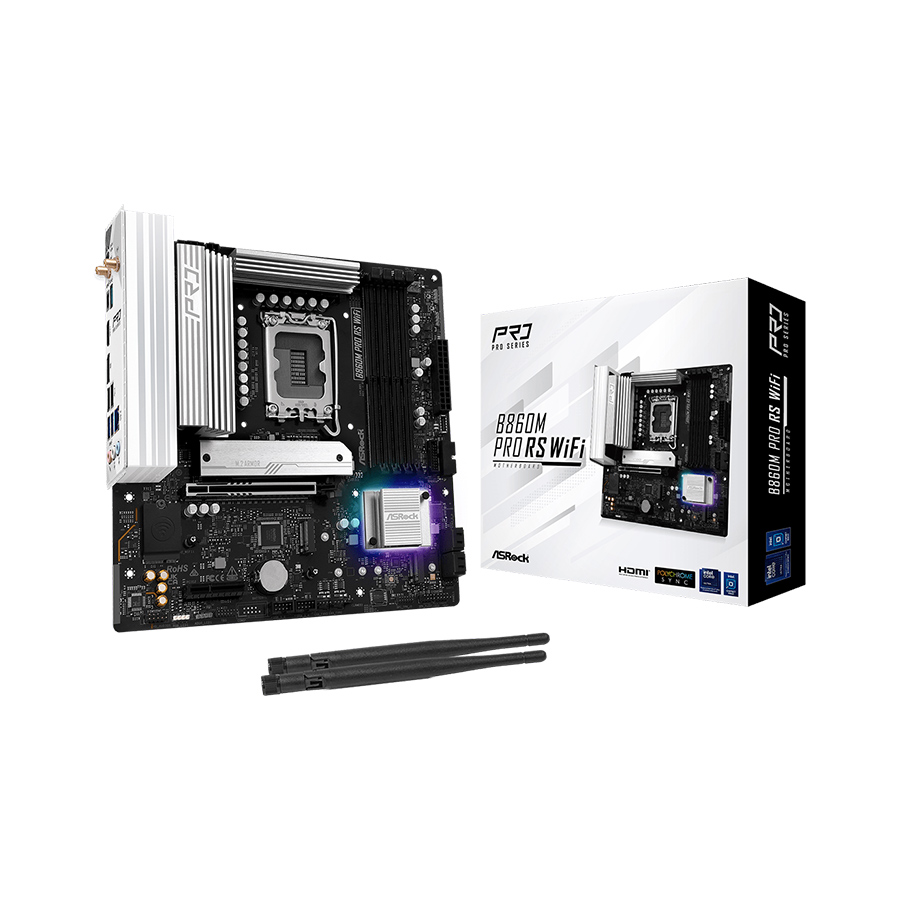

ASRock B860M Pro RS WiFi DDR5 LGA1851 ( Supports 15th Gen CPUs only )
Model 90-MXBRQ0-A0UAYZ
Superb Productivity
PCIe Gen5 (Graphics, M.2)
10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
4 x DDR5 DIMM supports Dual Channel, up to 8666+ (OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x4

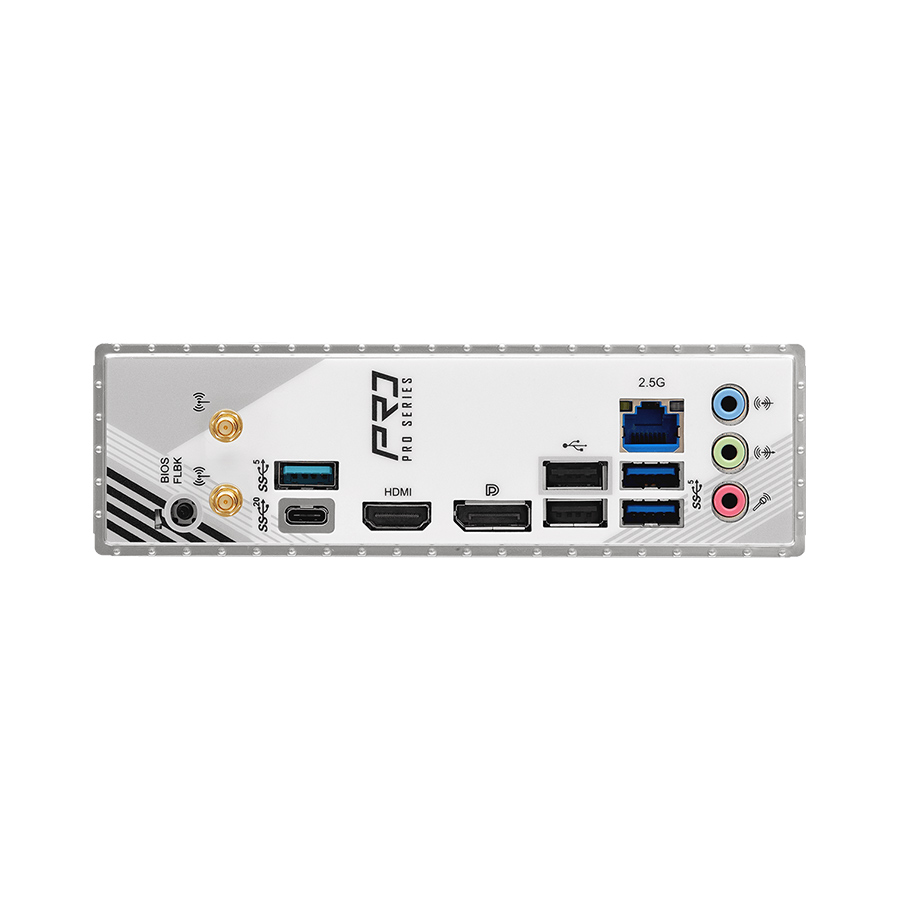

Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
7 USB 3.2 Gen1 (3 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN
802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback, M.2 Bottom Heatsink
| Socket | LGA1851 |
| Chipset / Processor | Intel B860 |
| Storage | DDR5 |
| Brand | ASRock |
| SKU / Part No. | 90-MXBRQ0-A0UAYZ |
| Weight | 1.00 kg |
